Description

30 watt,100v line mixer amp with built in FM tuner, MP3 player and Bluetooth receiver.

2 Channel, Compact Mixer Amplifier with FM, Bluetooth & USB/SD Playback

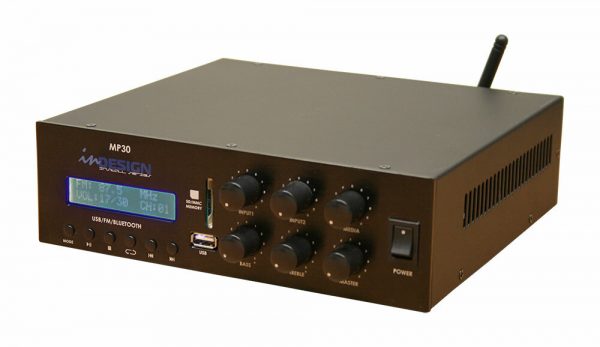

inDESIGN MP30 – 30 watt, all-in-one mixer amplifier is designed for small to medium installations where multiple playback sources are required. The inbuilt FM Tuner & USB/SD MP3 player allow easy playback of your favourite FM station or music stored on a USB or SD card.

In addition, the inbuilt Bluetooth receiver allows the streaming of music from your phone, tablet or computer.

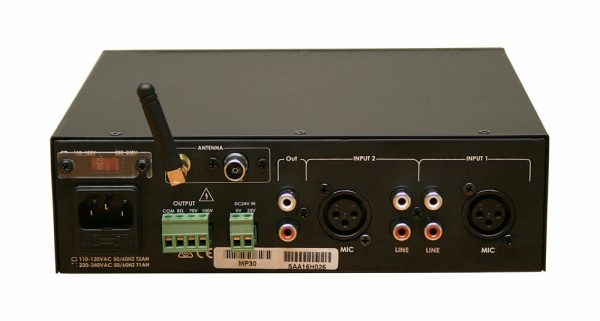

The MP30 delivers 30 watts via 8ë© or constant voltage 100V and 70V speaker outputs and features2 Microphone/Line inputs with individual gain control for external audio sources & microphones.

The dual RCA output allows all the mixed audio signals to be sent to an external booster amplifier.It‰Ûªs also possible to operate the MP30 using the 24V DC.

An ideal choice for caf̩s, restaurants, offices, warehouse, factories, classrooms and most retail spaces.

Specifications

Output power: 30 watts. 8ë© or constant voltage 100v/70v line
AC power supply: 110VAC – 240VAC Switchable
Output low impedance: 8 ohm
Hi impedance output: 70V / 161 ohm, 100V / 333 ohm
Input sensitivity: Microphone 1mV, Line 500mV
Frequency response: 90Hz ‰ÛÒ 16KHz, +/- 1dB
THD (at -3dB rate power): -0.5% @ 1KHz
Tone control: Bass 100Hz + – 10dB, Treble 10kHz + – 10dB
Protection: Thermal protected at 95 degrees, muted input, short circuit, overload
Size mm: 220 x 66 x 200
Weight kg (Net): 2.8
FM radio: 88 ‰ÛÒ 108MHz. 30 preset stations
Bluetooth: V3.0, V4.0 supported
USB/SD playback: MP3 & WMA supported
Line Out sensitivity: 600mV
Mains power: 110VAC ‰ÛÒ 240VAC switchable
Power consumption: 60 watts
Safety: RCM / CE / EMC UL60065
Channel separation: >50dB
Noise level: <75dB DC power supply: 21-25V AC fuse: 240V / 1A, 115V / 2A * Disclaimer: Instructions and specifications are correct at time of printing. Information within may be subject to change without notice.
