Description

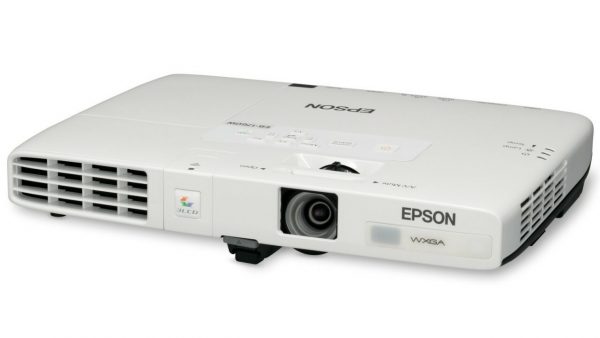

The Epson EB-1775W is the thinnest 3,000 lumen projector in the world and the latest addition to the Epson Projector range. Weighing in at only 1.7kg, and boasting a broad range of user friendly functionality including automatic setup with V + H keystone correction, and small enough to fit in one bag along with your notebook PC, the EB-1775W is a lightweight projector that really packs a punch.
Easy to use Features Including Full Automatic Setup – Simply turn on the power and leave the rest to the projector
Smallest 3,000 lumen projector in the world – Only 45mm thick, and 1.7kg in weight
Wireless 802.11b/g/n – Included standard with the EB-1775W
“One Bag” Solution for Busy Executives – So small you can carry both your notebook PC and projector in the one carry bag!
Low Cost Total Cost of Ownership – Lamp price only $119RRP

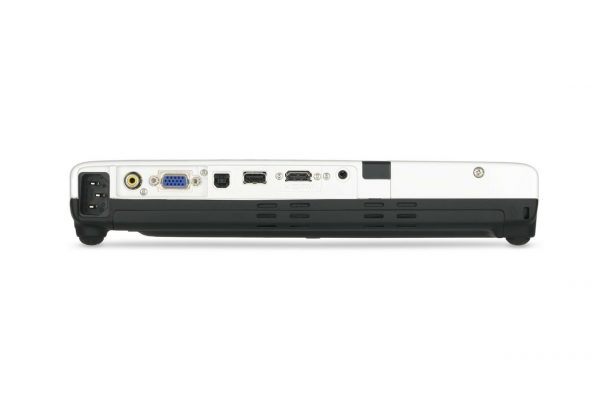

Broad Connectivity – HDMI, VGA, Video (RCA), USB Type B, USB Type A, Audio (stereo mini)
Easy-To-Use
The Epson EB-1775W was designed for absolute ease of use. Simply turn on the power, direct the projector towards the screen or wall and the projector will automatically correct the image in seconds.
The EB-1775W is even able to correct horizontal keystoning, focus, and where the projected image extends beyond the screen or whiteboard the user need only press the “screen fit” button and the EB-1775W will automatically resize the image to match with the edges of the screen, adjusting focus at the same time. All this in less than 4 seconds. Simple!
In line with the screen aspect of most notebook PCs, the EB-1775W projects in a native WXGA widescreen aspect, meaning no complications. Simply connect, and project!
Network and Wireless Capability
With the EB-1775W you can remove the need for untidy, complicated cabling, and connect to your 802.11b/g/n wireless network via the ELPAP07 wireless LAN module (included). For added simplicity, the ELPAP08 USB Quick Wireless Connection Key (included) enables users to make a quick peer to peer connection to a PC.
USB Display Function and USB Memory Slide Show
The EB-1775W can display your presentation with image, audio and mouse control via a connection to a PC or Mac with a simple USB cable. You can also create and display images directly from a USB memory device, making it possible to give presentations without the need for a PC.
Low Power Consumption – EuP Compliance
At Epson, we know that planning for the future requires a strong commitment to the environment. That’s why these products conform to the new European Directive on Eco-Design of energy using products. The main objective of this directive is to ensure energy efficiency throughout a products lifecycle. The EB-1775W conforms to the criteria of this directive.
Direct Connect to ELP-DC06
Further enhancing suitability to the modern corporate environment is the ability for the EB-1775W to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC
Product Specs
| PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | |
|---|---|---|
| PROJECTION METHOD | Front / Rear / Ceiling Mount | |
| SPECIFICATION OF MAIN PARTS | ||
| LCD | Size | 0.59 inch without MLA |
| Driving method | Poly-Silicon TFT Active Matrix | |
| Pixel number | (1280 x 800) x 3 | |
| Native resolution | WXGA | |
| Aspect ratio | 16:10 | |
| Pixel arrangement | Cross Stripe | |
| Refresh Rate | 50Hz-60Hz | |
| PROJECTION LENS | Type | Manual zoom / focus |
| F-number | 1.58 – 1.70 | |
| Focus length | 13.52 – 16.22mm | |
| Zoom ratio | 1 – 1.2 | |
| Offset | 10:1 | |
| Type | 205 W UHE | |
| Optical System | Dichroic Mirror Separation & Prism Combine Method | |
| SCREEN SIZE (PROJECTED DISTANCE) | 30 to 300 inch [0.67 to 6.81m] (Zoom: Tele), 30 to 300 inch [0.80 to 8.18m] (Zoom: Wide) 60″ screen 1.35m – 1.62m |
|
| BRIGHTNESS | ||
| High Brightness Mode | 3,000 Lumens Light Output 3,000 Lumens Colour Light Output (Colour mode: Game, Zoom: Wide) |
|
| Low Brightness Mode | 1,700 Lumens Light Output 1,700 Lumens Colour Light Output (Colour mode: Game, Zoom: Wide) |
|
| CONTRAST | 2000:1 (auto iris on ) | |
| BRIGHTNESS UNIFORMITY | 87% (Typ.) | |
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | |
| SOUND OUTPUT (Internal speaker) | 1W monaural | |
| FUNCTION | User Logo, A/V mute, Freeze, E Zoom, Help | |
| COLOUR MODES | PC: Dynamic, Photo, Presentation, Theatre, sRGB, Blackboard, Whiteboard, Custom. Video: Dynamic, Sports, Presentation, Theatre, sRGB, Blackboard, Whiteboard, Custom. |
|
| EFFECTIVE SCANNING FREQUENCY RANGE | ||
| PIXEL CLOCK | 13.5MHz to 162MHz | |
| HORIZONTAL | 15KHz to 92KHz | |
| VERTICAL | 50Hz to 117Hz | |
| ADJUSTMENT FUNCTION | ||
| PROJECTOR / REMOTE CONTROL | Brightness / Contrast / Tint / Saturation /Sharpness / Input signal / Sync / Tracking / Position /Color temperature / Volume / etc… | |
| height ADJUSTER | Front-centre | |
| TILT ANGLE | 0 to 14 degrees | |
| KEYSTONE CORRECTION | Vertical: -45 to +45 degrees (Zoom: Tele) Horizontal: -30 degrees to +30 degrees ( Zoom: Tele) |
|
| AUTO KEYSTONE CORRECTION | Vertical: -30 degrees to +30 degrees Horizontal: -20 degrees to +20 degrees |
|
| SOURCE SEARCH | YES | |
| AUTO DETECTION OF RGB / YCbCr | YES | |
| MULTI SCREEN COLOUR ADJUSTMENT | YES | |
| OPERATION PANEL PROTECTION FUNCTION | YES | |
| AUTO IRIS ON/OFF | YES | |
| PASSWORD PROTECTED FUNCTION (Security Function) |
(Protection of User logo, Time lock, Network) | |
| ANALOGUE RGB I/O | ||
| DISPLAY PERFORMANCE | Native | 1280 x 800 pixels |
| INPUT SIGNAL | Signal type | Separate signal |
| Video signal | Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
| Sync. signal | Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | |
| Audio signal | 500mVrms / 47K-ohm | |
| VIDEO INPUT TERMINAL | D-sub 15pin x 1 Blue-moulding | |
| HDMI | ||
| Input signal | Video standard Video signal |
480i/576i/480p/576p/720p/1080i/1080p TMDS ( signal for HDMI ) |
| Input terminal | Audio signal Video |
Linear PCM HDMI x 1 (Correspond to HDCP) |
| VIDEO I/O | ||
| DISPLAY PERFORMANCE | NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern) | |
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
| Video signal | Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
| Audio signal | 500mVrms / 47Kohm | |
| VIDEO INPUT TERMINAL | Composite Video: RCA (Yellow) x 1 S-Video: Mini DIN Component Video: Mini D-sub 15pin Blue-moulding (in common with Analog RGB connector) Video-RGB: Mini D-sub 15pin Blue-moulding (in common with Analog RGB connector) USB Display |
|
| CONTROL I/O | ||
| USB I/O
USB I/O |
I/O terminal
I/O Speed |
Type B x1 (for USB Display, mouse, K/B control)
USB Vers. 2.0 |
| OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F), (20% – 80% Humidity) Thermal shutdown > 45 degree C |
|
| OPERATING ALTITUDE | 0m to 2286m < 0ft to 7500ft > (over 1500m / 4,921ft with high altitude mode) |
|
| DIRECT Power On | Yes | |
| COOL-DOWN PERIOD | Instant off | |
| START-UP PERIOD | < 7.2 seconds | |
| EXHAUST DIRECTION | Front | |
| POWER SUPPLY VOLTAGE | 100-240V AC±10% 50/60Hz | |
| POWER CONSUMPTION | 240VAC 2.7-1.2A 50/60Hz Lamp On 304W |
|
| DIMENSION | ||
| EXCLUDE FEET | 210(D) x 292(W) x 44(H) mm | |
| MAXIMUM DIMENSION | 210(D) x 292(W) x 53.4(H) mm | |
| WEIGHT | Approx. 1.7Kg | |
| FAN NOISE | ||
| LOW BRIGHTNESS MODE | 30dB | |
| HIGH BRIGHTNESS MODE | 40dB | |
| EASY MP FUNCTION | ||
| Projector control and projector management via network | Email notification: Yes (via Included Wireless LAN Unit) SNMP: Yes (via Included Wireless LAN Unit) Web Control: Yes (via Included Wireless LAN Unit) PJ Link : Yes (via Included Wireless LAN Unit) AMX Device Discovery: Yes (via Included Wireless LAN Unit) Network Presentation: Yes (via Included Wireless LAN Unit) |
|
| Software | EMP Monitor (for Windows*#) EMP NS Connection (for windows*# and Mac) EMP Slide Maker2 (for Windows*#) |
|
| Security (Wireless LAN) | WEP, WPA-PSK (TKIP), WPA-PSK(AES) * Software compatible with MS Vista available free of charge at epson.com.au from June 1st, 2007 # EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit. |
|
| ACCESSORIES | ||
| POWER CORD | 3.0m | |
| COMPUTER CABLE | 1.8m, Mini D-sub 15pin (Male) – Mini D-sub 15pin (Male) | |
| USB CABLE | 3.0 m, USB A / B HI-SPEED | |
| REMOTE CONTROL | Compact type (Included) | |
| BATTERY | Manganese AA x 2 | |
| AUDIO ADAPTER | 3.5mm stereo mini plug (male)RCA jack x 2 (female) 15cm | |
| WIRELESS LAN ADAPTOR | 802.11b/11g/11n (Included) | |
| QUICK WIRELESS KEY (ELP-AP08) | (Included) | |
| SOFT CARRYING CASE | Included | |
| LENS COVER | In built | |
| SOFTWARE | INCLUDED (CD-ROM) | |
| PASSWORD PROTECT STICKER | Included | |
| OWNER’S MANUAL | Included | |
