Description
The Epson EB-1880 3LCD Multimedia Projector is an easy to use high brightness solution to your presentation needs. Simple setup and advanced flexibility enable users to adapt to the environment at hand, delivering professional presentations with ease and versatility. The horizontal keystone correction slider makes it easy to create a perfectly square image, regardless of where the projector is placed. With 4,000 lumens Colour Light Output and 4,000 lumens White Light Output, the EB-1880 delivers crisp, bright images in even the most demanding environment.
KEY FEATURES:
- Easy to use Features Including Horizontal Keystone Correction – Create a perfectly square image regardless of where the projector is placed in a room
- Advanced Networking Capability – Enables users to monitor, control and present from a remote location
- Broad Connectivity – HDMI, USB display, PC Free slideshows, network and optional wireless connectivity
- USB Display Function – Project via a simple USB cable connection without having to change the monitor output setting on the PC
- Low Power Consumption – These powerful projectors all comply with the European EuP Directive on Eco-Design of energy using products
Weighing in at only 3.5kg, and capable of producing up to 4,000 lumens Light Output and 4,000 lumens Colour Light Output, the Epson EB-1880 is most at home in the corporate environment. Fully networkable and boasting many easy to use features, these projectors are an ideal tool for the modern office.
FEATURES AND BENEFITS:
Easy Horizontal and Vertical Keystone Correction
Epson’s horizontal and vertical keystone correction means you can project a rectangular image from any angle. Just move the slider bar to make the necessary horizontal adjustments. Your Epson EB-1880 can be off to the side and above or below the screen, while your presentation is front and centre.
Quick Corner
This innovative feature allows you to move any of the four corners of an image independently at setup, using the remote control to adjust each corner for a perfectly rectangular picture.
USB Display Function and USB Memory Slide Show
The EB-1880 can display your presentation via a connection to a PC with a simple USB cable. You can also create and display images directly from a USB memory device, making it possible to give presentations without the need for a PC.
Advanced Networking
With the EB-1880, it’s possible to monitor and control up to 1,024 networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location.
Low Power Consumption – EuP Compliance
At Epson, we know that planning for the future requires a strong commitment to the environment. That’s why these products conform to the new European Directive on Eco-Design of energy using products. The main objective of this directive is to ensure energy efficiency throughout a product’s lifecycle. The EB-1880 conforms to the criteria of this directive.
Direct Connect to ELP-DC06
Further enhancing suitability to modern corporate and education environments is the ability for the EB-1880 to connect directly to the Epson ELP-DC06 document camera / visualiser. The EB-1880 features unique technology enabling it to connect via USB and provide full operation without the need for a PC.
Product Specs
| WHAT’S IN THE BOX | |||
|---|---|---|---|
| Epson EB-1880 Projector inc. 1.8m Computer Cable, 1.8m power cable Remote Control, Batteries x 2, Projector Software Ver. 1.02b (CD ROM), Password Protect Sticker, Manual | |||
| TECHNOLOGY | |||
| Projection System | Epson 3LCD, 3-chip technology | ||
| LCD Panel | 0.63-inch with MLA (D7) | ||
| OPTICAL | |||
| Zoom | 1 – 1.6 (Optical Zoom) | ||
| Screen Size | 30″ to 300″ | ||
| Projection Distance | 60″ screen 1.69 – 2.75m | ||
| Throw Ratio | 1.38 (Zoom: Wide), 2.24 (Zoom: Tele) | ||
| Projection Lens F Number | 1.51 – 1.99 | ||
| Projection Lens Focal Length | 18.2 mm – 29.2 mm | ||
| Focus Method | Manual Focus | ||
| Offset | 8.6:1 | ||
| IMAGE | |||
| Colour Light Output | 4,000 Lumens | ||
| White Light Output | 4,000 Lumens | ||
| Resolution | XGA | ||
| Native Aspect Ratio | 4:3 | ||
| Contrast Ratio | 2,500:1 | ||
| Lamp Hours | Normal/Eco: 3,000/4,000 Hours | ||
| Lamp Type | 275W UHE (E-TORL) | ||
| Keystone Correction | Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees |
||

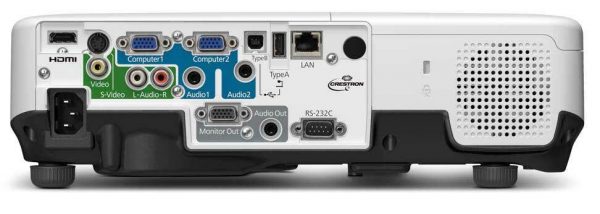

| CONNECTIVITY | |||
| Input: Video | 1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin) | ||
| Input: Computer | 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B | ||
| Input: USB Memory Device | USB Type A Ver.2.0 | ||
| Input: Three-In-One USB Display | 1 x USB 2.0 type B | ||
| Input: Digital | 1 x HDMI | ||
| Input: Audio | 1 x RCA (Red/White), 2 x Stereo mini jack | ||
| Input: Control | 1 x USB 2.0 type B, RS232C | ||
| Input: Epson USB Document Camera | 1 x USB 2.0 type B | ||
| Network I/O: | RJ45 x 1 (100Mbps) | ||
| Wireless Connectivity | – | ||
| Output: Video | D-sub 15 pin (black molding) | ||
| Output: Audio | Stereo mini jack x 1 | ||
| Speaker Output | 10W | ||
| ADVANCED FEATURES | |||
| EasyMP Network & Control | Yes | ||
| EasyMP Network Projection | Yes | ||
| PC Free Presentations | No | ||
| USB Plug ‘n Play | Yes | ||
| AV Mute Slide | No | ||
| Instant Off | Yes | ||
| Direct Power On/Off | Yes | ||
| Security | Kensington®-style lock provision Padlock Security cable hole Password protect function |
||
| Colour Modes | Dynamic, Presentation, Theatre, Photo, sRGB, Blackboard, Whiteboard | ||
| GENERAL | |||
| Dimensions D x W x H | 263 x 345 x 93 mm | ||
| Weight | 3.3kg | ||
| Lamp Warranty | 12 months or 750 hours* | ||
| Projector Warranty | 2 Years | ||
| Power Consumption: Lamp on | Normal: 363W / Eco: 297W | ||
| Power Consumption: Standby | 0.33W (communication off) | ||
| Noise Level | Normal: 39dB / Eco: 35dB | ||
