Description
Designed for total ease of use in the corporate environment, these powerful projectors feature market leading technologies that deliver automatic set-up, rich, colours and crisp images, enhancing the professional appearance of your business.
KEY FEATURES:
- Easy to use Features Including Automatic Setup – Simply turn on the power and leave the rest to the projector via the horizontal auto keystone adjustment feature.
- Powerful Brightness – Enables the EB-1915 to be used in bright environments, even in large rooms such as classrooms and offices without dimming the lights or drawing the curtains.
- Network Functionality – Operate and monitor from a remote location
- Wireless Connectivity – Connect to a network wirelessly, eliminating the need for cabling
- USB Display Function – Project via a simple USB cable connection without having to change the monitor output setting on the PC
- Low Power Consumption – The EB-1915 complies with the European EuP Directive on Eco-Design of energy using products

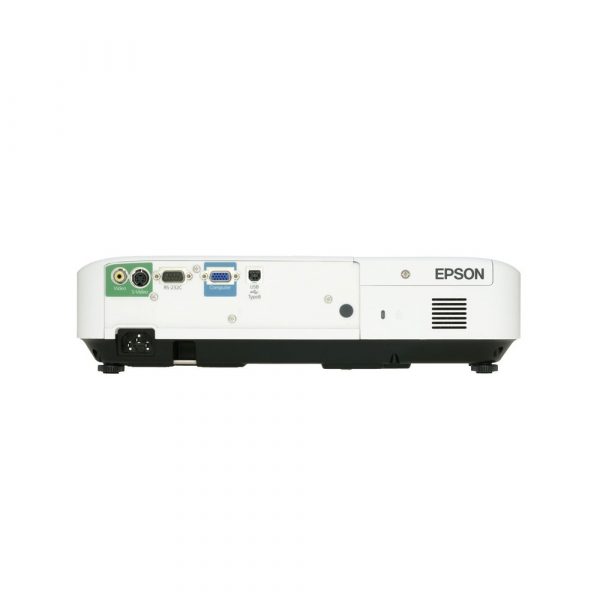

- Broad Connectivity – 2 x PC inputs, HDMI, S-Video, RCA, RS-232C, Audio out, monitor out, RJ45

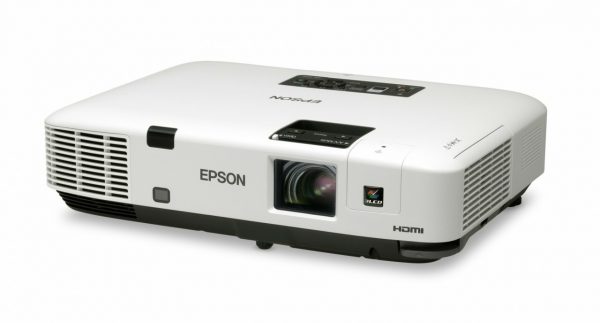

Weighing in at only 3.5kg, and capable of producing up to 4,000 lumens Light Output and 4,000 lumens Colour Light Output, the Epson EB-1915 is most at home in the corporate environment. Fully networkable, and boasting many easy to use features, this projector is an ideal tool for the modern office.
FEATURES AND BENEFITS:
Easy-To-Use
The Epson EB-1915 is designed for absolute ease of use. Simply turn on the power, direct the projector towards the screen or wall and the projector will automatically correct the image in seconds. Focus is automatically adjusted and any vertical keystoning corrected. The EB-1915 is even able to correct horizontal keystoning, and where the projected image extends beyond the screen or whiteboard the user need only press the “screen fit” button and the EB-1915 will automatically resize the image to match with the edges of the screen, adjusting focus at the same time. Simple!
Network and Wireless Capability
With the EB-1915 monitoring and operation can be carried out from a remote PC via network connection. System Administrators can turn the projector off, switch between sources, as well as control and monitor lamp and temperature conditions. Using this feature you can be sure that all projectors are operating correctly and be certain that all units are turned off at the end of the day and in the process, save time, money and reduce impact on the environment.
With the EB-1915 you can even remove the need for untidy, complicated cabling, and connect to your 802.11a/b/g wireless network. For added simplicity, the EB-1915 enables you to make a quick peer to peer connection to a PC via Epson’s optional Quick Wireless Connection USB key.
USB Display Function and USB Memory Slide Show
The EB-1915 can display your presentation via a connection to a PC with a simple USB cable. You can also create and display images directly from a USB memory device, making it possible to give presentations without the need for a PC.
Low Power Consumption – EuP Compliance
At Epson, we know that planning for the future requires a strong commitment to the environment. That’s why these products conform to the new European Directive on Eco-Design of energy using products. The main objective of this directive is to ensure energy efficiency throughout a products lifecycle. The EB-1915 conforms to the criteria of this directive.
Direct Connect to ELP-DC06
Further enhancing suitability to the modern corporate environment is the ability for the EB-1915 to connect directly to the Epson ELP-DC06 document camera / visualiser. This Epson product features unique technology enabling it to connect via USB and provide full operation without the need for a PC.
Product Specs
|
PROJECTION SYSTEM
|
RGB Liquid Crystal Shutter Projection System | |
|---|---|---|
|
PROJECTION METHOD
|
Front / Rear / Ceiling Mount | |
|
SPECIFICATION OF MAIN PARTS
|
||
| LCD | Size | 0.7 inch with MLA |
| Driving method | Poly-Silicon TFT Active Matrix | |
| Pixel number |
786,432 pixels |
|
| Native resolution | XGA | |
| Aspect ratio | 4:3 | |
| Pixel arrangement | Stripe | |
| Refresh Rate | 50 – 60Hz | |
| PROJECTION LENS | Type | Manual Zoom / Powered Focus |
| F-number | 1.75 – 2.42 | |
| Focus length | 24 – 38.2mm | |
| Zoom ratio | 1:1.6 | |
| Lens Cover | Slide lens shutter | |
| LAMP | Type | 230 W UHE (E-TORL) |
|
SCREEN SIZE (PROJECTED DISTANCE)
|
30 to 300 inch [1.58 to 16.24m] (Zoom: Tele), 30 to 300 inch [0.96 to 9.07m] (Zoom: Wide) |
|
|
LIGHT OUTPUT
|
||
| Normal Mode | 4,000 Lumens Light Output 4,000 Lumens Colour Light Output (Colour mode: Dynamic, Zoom: Wide) |
|
| ECO Mode | 2,700 Lumens Light Output 2,700 Lumens Colour Light Output (Colour mode: Dynamic, Zoom: Wide) |
|
|
CONTRAST
|
2000:1 (Auto Iris On) | |
|
BRIGHTNESS UNIFORMITY
|
88% (Typ.) | |
|
COLOUR REPRODUCTIVITY
|
Full colour (16.77 million colours) | |
|
VIDEO QUALITY
|
3D Y/C separation Noise reduction, Motion compensated Interlace-Progressive conversion (2-2, 3-2 film detection) | |
|
SOUND OUTPUT (Internal speaker)
|
10W monaural | |
|
FUNCTION
|
Pointer, User Logo, A/V mute, Freeze, E Zoom | |
|
COLOUR MODES
|
Dynamic, Presentation, Theatre, Photo, Blackboard, Whiteboard, Sports, Custom, sRGB | |
|
EFFECTIVE SCANNING FREQUENCY RANGE (Analog)
|
||
| PIXEL CLOCK | 13.5MHz to 162MHz up to UXGA 60Hz | |
| HORIZONTAL | 15KHz to 92KHz | |
| VERTICAL | 50Hz to 85Hz | |
|
EFFECTIVE SCANNING FREQUENCY RANGE (Digital)
|
||
| PIXEL CLOCK | 13.5MHz to 162MHz up to UXGA 60Hz | |
| HORIZONTAL | 15KHz to 75KHz | |
| VERTICAL | 24/50/60Hz | |
|
ADJUSTMENT FUNCTION
|
||
| PROJECTOR / REMOTE CONTROL | Brightness / Contrast / Tint / Saturation / Sharpness / Input signal / Sync / Tracking / Position / Color temperature / Volume / etc… |
|
| HEIGHT ADJUSTER | Front-centre | |
| TILT ANGLE | 0 to 10 degrees | |
| KEYSTONE CORRECTION |
Vertical: -45 to +45 degrees (Zoom: Tele) Horizontal: -30 to +30 degrees (Zoom: Tele) |
|
| AUTO KEYSTONE CORRECTION | Yes (Horizontal & Vertical) | |
| SCREEN FIT | YES | |
| SOURCE SEARCH | YES | |
| AUTO DETECTION OF RGB / COMPONENT | YES | |
| MULTI SCREEN COLOUR ADJUSTMENT | YES | |
| PROJECTOR ID | YES | |
| OPERATION PANEL PROTECTION FUNCTION | YES | |
| PASSWORD PROTECTED FUNCTION (Security function) |
YES (Protection of User logo, Power On, Network) | |
| TEST PATTERN | YES | |
| HIGH ALTITUDE MODE | YES | |
| USER’S LOGO | YES | |
| IRIS ON/OFF | YES | |
| USER BUTTON | YES | |
| LENS SHUTTER FUNCTION | A/V Mute Function | |
|
ANALOGUE RGB I/O
|
||
| DISPLAY PERFORMANCE | Native | 1024 x 768 pixels |
| INPUT SIGNAL | Signal type | Separate signal |
| Video signal | Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm) | |
| Sync. signal | Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | |
| Audio signal | 500mVrms / 47K-ohm | |
| INPUT TERMINAL | Video | Mini D-sub 15pin x 2 Blue moulding |
| Audio | Stereo mini-jack x 2 | |
| OUTPUT SIGNAL | Video | Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
| Sync. | Separate (positive & negative,TTL) / Composite (positive & negative, TTL) / Sync. on green (negative 0.2-0.4 Vpp) |
|
| OUTPUT TERMINAL | Video | Mini D-sub 15pin x 1 Black moulding |
| Audio | Stereo mini-jack | |
|
VIDEO I/O
|
||
| DISPLAY PERFORMANCE | NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern) | |
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
| Video signal | Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
| Audio signal | 500mVrms / 47Kohm | |
| INPUT TERMINAL | Video | Composite Video: RCA (Yellow) x 1 S-Video: Mini DIN Component Video: Mini D-sub 15pin Blue-moulding (in common with Analog RGB connector) Video-RGB: Mini D-sub 15pin Blue-moulding (in common with Analog RGB connector) |
| Audio | RCA (White/Red) x 2 | |
| USB DISPLAY | Display Performance | Native (1024 x 768) |
| Input Signal |
Video Audio |
|
|
CONTROL I/O
|
||
| USB I/O | I/O Terminal | USB connector series B x1 (for mouse, K/B, control) |
| SERIAL I/O | I/O Terminal | Mini D-sub 9pin x1 |
| I/O Signal | RS-232C | |
| NETWORK I/O | Wired LAN | RJ45 x1 100Mbps |
| MEMORY I/O | I/O Terminal | USB Type A x 1 (for USB Memory, Document Camera) |
|
OPERATING TEMPERATURE
|
5°C to 35°C (41°F to 95°F) (20%-80% Humidity ) | |
|
DIRECT POWER ON
|
YES | |
|
DIRECT POWER OFF
|
YES | |
|
COOL-DOWN PERIOD
|
Instant off | |
|
START-UP PERIOD
|
Approx. 10 seconds | |
|
POWER SUPPLY VOLTAGE
|
100 – 120V / 200 – 240V ±10%, 50/60Hz AC | |
|
POWER CONSUMPTION
|
319W (Normal Mode), 237W (ECO Mode) 6 .8W (Standby network on), 0.3W (Standby Network off) |
|
| DIMENSION | ||
| EXCLUDE FEET | 257(D) x 357(W) x 86(H) mm | |
| MAXIMUM DIMENSION | 257(D) x 357(W) x 95(H) mm | |
| WEIGHT | Approx. 7.82lb / 3.5Kg | |
|
FAN NOISE
|
||
| ECO MODE | 29dB | |
| NORMAL MODE | 37dB | |
| ACCESSORIES | ||
| POWER CORD | 3m | |
| COMPUTER CABLE | 1.8m, D-sub 15pin (Male) – Mini D-sub 15pin (Male) | |
| USB CABLE | 3m, USB A / B | |
| SOFT CARRYING CASE | Included | |
| REMOTE CONTROL | Included | |
| BATTERY | Alkaline AA x 2 | |
| PASSWORD PROTECT SEAL | Included | |
| BUNDLED SOFTWARE | Meeting & Monitoring Ver.1.10 | |
| OWNER’S MANUAL | Included (CD-Rom) | |
| WARRANTY | ||
| STANDARD WARRANTY | 2 years* *excluding lamp |
|
|
EASY MP
|
||
| FUNCTION | Projector control and projector management via network E-mail notification SNMP AMX Device Discovery |
|
| SOFTWARE | EMP Monitor Ver4.31 (for Windows) | |
| EMP Network Manager Ver1.02 (for Windows / MAC OSX) | ||
| PC FREE(PHOTO, IMAGE AND MOVIE) | Yes | |
| NETWORK PRESENTATION | Yes | |
| PC APPLICATIONS | EasyMP Monitor Ver.4.31 (for Windows) | |
| Projector Control Ver.1.01 (for Windows) Web download only | ||
| EasyMP Network Projection Ver.2.60 (for Windows and Mac) With Audio | ||
| EasyMP Slide converter Ver.1.00 (for Windows) | ||
| WIRELESS LAN SECURITY | WEP, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES) EAP-TLS, EAP-TTLS/MD5, EAP-TTLS/MS-CHAPv2, PEAP/MS-CHAPv2, PEAP/GTC LEAP, EAP-Fast/MS-CHAPv2, EAP-Fast/GTC |
|
