Description
Ultra bright. Ultra flexible. Ultra reliable. The best ultra-short throw projection technology just got a whole lot better, thanks to the latest innovations from Epson. Epson engineers have totally redefined the Ultra Short Throw market with a new shorter throw distance, higher brightness, and more flexible, user friendly mounting!
KEY FEATURES:
- Ultra Short Throw – Minimal shadows and glare. Ideal for use with interactive whiteboards.
- Ultra Bright Images – With a brightness of 3,100 lumens White and Colour Light Output
- Integrated Wall Mount Included – Stylish integrated design with extensive adjustability
- Advanced Networking Capability – Enables users to monitor, control and present from a remote location
- Broad Connectivity Including HDMI – HDMI, USB display, PC Free slideshows, network and optional wireless connectivity
- Lowest Epson Lamp Price Ever Seen – Incredibly low price of only $79 inc GST (RRP. Aust)
- 16W Built-in Speaker – Built in audio with the power to fill a classroom
FEATURES AND BENEFITS:
Upgrade to Ultra Short Throw
Capable of producing an interactive image size anywhere from 60” up to 102” diagonal (native WXGA), the Epson Ultra Short Range delivers an amazing work environment. Thanks to this Ultra Short Throw distance, presenters are able to deliver rich multimedia content without the distraction of glare in the eyes, or shadows on the board disrupting vision. With the added benefit of 3LCD Technology, presentations will feature rich, vibrant colours that bring content to life. Plus, with 3,100 lumens Light and Colour Light Output, there is no need to dim the lights or draw the curtains, so meetings or lessons can start straight away without interruption.
Total Ease of Installation

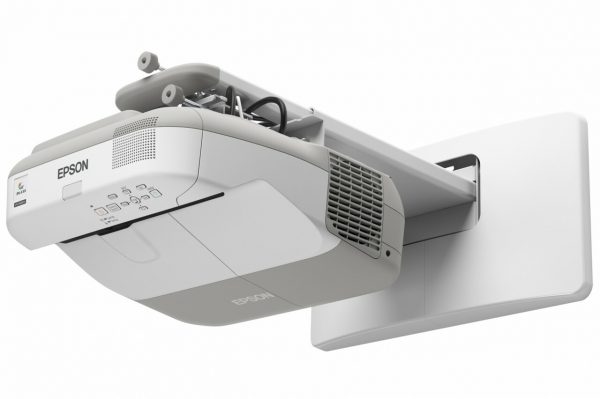

The EB-470, 475W, 480 and 485W come complete with an integrated wall mount, designed specifically for stylish appearance, and fast, simple installation. Adjustment dials are colour coded to match image-correction diagrams projected by the projector and selectable from the on screen display. Simply find the image that best represents the current shape of the projected image and adjust the corresponding coloured dial. The image will be square and the projector operational within moments. For those extra tricky installations where an uneven projection surface impedes progress, simply utilise the Quick Corner function to fine tune the image for perfectly square corners and edges.
Optional Wireless Connection Including iPads
With the addition of the optional ELPAP07 Wireless LAN Unit, the EB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.
Users can even project wirelessly from their iPad or iPhone thanks to Epson’s innovative iProjection app. This app is available now via the Apple® iTunes® store.
Advanced Networking
It’s possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location.
Wireless Connectivity
With the addition of the optional ELPAP07 Wireless LAN Unit, the EB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.
Low Cost of Ownership
The EB-400 Series projector features a lamp boasting an estimated life of up to 4,000 hours and a cost of only $79RRP.
This series of projectors also benefit from a high efficiency electrostatic filter with an estimated maintenance cycle of up to 5,000 hours.
Direct Connect to ELP-DC06
Further enhancing suitability to the modern education environment is the ability for the EB-470, 475W, 480 and 485W to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.
Product Specs
| WHAT’S IN THE BOX | |||
|---|---|---|---|
| Projector including 5m Power Cable, Remote Control, Batteries x 2, Projector Software Ver. 1.03b (CD ROM), Password Protect Sticker, User Manual Set, Setting Plate (mount), Template Sheet.. | |||
| TECHNOLOGY | |||
| Projection System | Epson 3LCD, 3-chip technology | ||
| LCD Panel | 0.59-inch with MLA | ||
| OPTICAL | |||
| Zoom | 1 – 1.35 (Optical Zoom) | ||
| Screen Size | 60″ to 102″ | ||
| Projection Distance | 74.3″ screen 0.438m | ||
| Throw Ratio | 0.27 (Zoom: Wide), 0.37 (Zoom: Tele) | ||
| Projection Lens F Number | 1.80 | ||
| Projection Lens Focal Length | 3.71mm | ||
| Focus Method | Manual Focus | ||
| Offset | 6.0:-1 | ||
| IMAGE | |||
| Colour Light Output | 3,100 Lumens | ||
| White Light Output | 3,100 Lumens | ||
| Resolution | WXGA | ||
| Native Aspect Ratio | 16:10 | ||
| Contrast Ratio | 3,000:1 | ||
| Lamp Hours | Normal/Eco: 3,000/4,000 Hours | ||
| Lamp Type | 190W UHE | ||
| Keystone Correction | Vertical: -5 to +5 degrees Horizontal: -5 to +5 degrees |
||

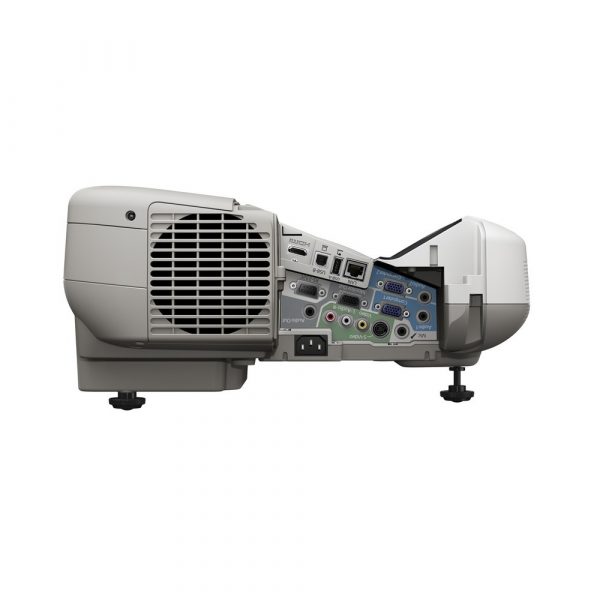

| CONNECTIVITY | |||
| Input: Video | 1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin) | ||
| Input: Computer | 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B | ||
| Input: USB Memory Device | USB Type A Ver.2.0 | ||
| Input: Three-In-One USB Display | 1 x USB 2.0 type B | ||
| Input: Digital | 1 x HDMI | ||
| Input: Audio | 1 x RCA (Red/White), 2 x Stereo mini jack | ||
| Input: Control | 1 x USB 2.0 type B, RS232C | ||
| Input: Epson USB Document Camera | 1 x USB 2.0 type B | ||
| Network I/O: | RJ45 x 1 (100Mbps) | ||
| Wireless Connectivity | Optional | ||
| Output: Video | D-sub 15 pin (monitor out black moulding) | ||
| Output: Audio | Stereo mini jack x 1 | ||
| Speaker Output | 16W | ||
| ADVANCED FEATURES | |||
| EasyMP Network & Control | Yes | ||
| EasyMP Network Projection | Yes | ||
| PC Free Presentations | No | ||
| USB Plug ‘n Play | Yes | ||
| AV Mute Slide | No | ||
| Instant Off | Yes | ||
| Direct Power On/Off | Yes | ||
| Security |
Kensington®-style lock provision |
||
| Colour Modes | Dynamic, Theatre | ||
| GENERAL | |||
| Dimensions D x W x H | 375 x 367 x 143mm | ||
| Weight | 5.4kg | ||
| Lamp Warranty | 12 months or 750 hours* | ||
| Projector Warranty | 3 Years | ||
| Power Consumption: Lamp on | Normal: 300W / Eco: 215W | ||
| Power Consumption: Standby | 0.27W (communication off) | ||
| Noise Level | Normal: 35dB / Eco: 28dB | ||
