Description
Double, triple or quadruple the brightness levels with Hitachi’s latest Multi Purpose stackable projectors. These versatile and feature rich models can either be stacked vertically or positioned horizontally to deliver superb images at a fraction of the cost of higher brightness models.
- Brightness: 4000 ANSI Lumens
- Resolution: WXGA
- Contrast Ratio: 2000:1
- Extended Hybrid Filter life of up to 5000 hours
- Lamp life: 5000 hours (Eco Mode)*
- Advanced networking features
- Full connectivity
- Perfect Fit
Features at a glance
3LCD – A sophisticated, innovative technology that utilises 3 chips to deliver vibrant, true-to-life and consistent images for the most demanding audiences.
Hybrid Filter – The Hybrid Filter lasts for more than 4000 hours, ten times longer than conventional filters. This extension in maintenance intervals reduces the overall cost of ownership significantly.
Security features – Advanced security features include Multi-Level PIN-Lock, Transition Detector, steel security bar, Kensington Lock and prominent security labels.
Blackboard/Whiteboard Mode – Projecting onto coloured or shiny backgrounds can make images appear either dull or uncomfortably bright. This mode ensures optimal brightness whether the screen is black, green or shiny white.
Low TCO – Significantly extended maintenance intervals resulting from long-life parts reduces the total cost of ownership.
PC-less Presentations – Simply plug in a memory stick, SD card, or even a portable hard disk drive and present without the need of a laptop.
Advanced Networking – Manage and control multiple projectors over LAN. Turn the projector on and off, schedule email alerts and monitor projectors all via the network.
AMX Device Discovery – When integrated with an AMX Controller, the relevant communication modules and drivers are downloaded to the projector automatically.
HD Ready – High Definition (HD) uses the latest technology to deliver clearer and sharper images. HD Ready indicates that this product is ready for high definition broadcasts.
HDMI – Get the highest quality image by connecting the latest in A/V equipment to the projector with HDMI (High-Definition Multimedia Interface).
Long Life Lamp – Using Eco Mode, lamp life is extended to more than 6,000 hours – equivalent to the projector being used for three hours a day over a period of ten years.
Template Function – This unique Hitachi feature allows you to project different patterns of lines and grids onto a whiteboard, blackboard or flip chart, making writing and drawing easier.
Virtually Maintenance Free – Hitachi projectors are designed to be easy to use and require minimal maintenance. Long-life parts significantly extend the maintenance intervals, reducing cost and any inconvenience.
Daytime Mode – It can be harder to see a projected picture when the sun is shining brightly. Projections are always vivid and colourful in a bright environment with Daytime Mode.
Quick On/Off – Plug in, turn on and present. The Quick On/Off feature and automatic resolution equals fast set-up
Input Source Naming – Personalise devices and inputs to the projector – for example, re-name a device input to “Tom’s Laptop” for easy recognition.
My Button – Assign custom functions or common tasks to a programmable button on your remote control.
Audio Pass Through – When all you need is sound and not pictures, this convenient feature lets you hear the projector’s speakers whilst the rest is on stand-by – helping to preserve lamplife.
Vertical Keystone Correction – Correct misaligned images automatically with vertical keystone correction.
Horizontal Keystone Correction – Correct misaligned images with horizontal keystone correction.
On Screen Display (OSD) – The new menu is much easier to use. Navigating through the different options is easier, whilst settings are clearly named.
Product Specs
OPTICAL
| LCD Panel | 0.59″ (1.5cm) P-Si TFT x 3 |
| Resolution | WXGA |
| Brightness | 4000 ANSI Lumens (Normal Mode) 2800 ANSI Lumens (Eco Mode) |
| Colour Light Output | 4000 ANSI Lumens |
| Contrast Ratio | 2000:1 |
| Lens | Manual focus, manual zoom x 1.7 |
| Lamp Wattage | 245W UHP |
| Lamp Life | 3000 Hours (Normal Mode) / 5000 Hours (Eco Mode)* |
| Diagonal Display Size | 30~300″ (76~762cm) |
| Number Of Colours | 8 Bit/colour, 16.7M colours |
| Lens Shift | Vertical 11:-1~6:1, Horizontal 11:9~9:11 |
| Optical Keystone | 11:-1~6:1 Upward shift |
| Distance To Width Ratio (:1) | 1.5 (Wide), 2.5 (Tele) |
COMPATIBILITY
| Computer Compatibility | VGA, SVGA, XGA, WXGA, WXGA+, SXGA, WSXGA+, UXGA, MAC 16″ |
| Video Compatibility | NTSC/PAL/SECAM/PAL-M/PAL-N/NTSC4.43 SDTV: 576i@50Hz, 480p@60Hz, 480i@60Hz HDTV: 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
FEATURES
| Speakers | 16W |
| Basic Functions | Freeze, Magnifying, Blank, Auto adjustment, Search |
| Picture Adjustments | Equalizing Gamma Correction, 2-3 pull down, Progressive Scan, Noise Reduction, Perfect Fit |
| Digital Keystone | Vertical Auto, Horizontal Manual |
| Advanced Features | MyScreen, My Memory, My Button, Blackboard/Whiteboard mode, Input Source Naming (English), Resolution Preset, PC-Less Presentation, Template mode, Audio pass through, Day time mode, Closed caption (for NTSC & component 480i only) |
| Outward | Easy lamp replace from top, Air filter on side |
| Power On & Off | Quick On, Direct On, Auto Off |
| Security Systems | PIN Lock, Myscreen PIN lock, Keypad Lock, Kensington slot, Transition Detector, Security bar |
| Security Systems | PIN Lock, Myscreen PIN lock, Keypad Lock, Kensington slot, Transition Detector, Security bar |
| Network | Network Presentation (PC still picture transfer), Configuring and Controlling the Projector via a Web Browser, Failure and Warning Alerts via E-mail, Projector Management via SNMP, Controlling the Projector via Scheduling, My Image (still image transfer), Display Command Control via the Network, Displaying text data transferred via the network, AMX Device Discovery, Network Bridge, PJLink™, Delivery of contents via LAN |
| OSD Languages | English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Arabian, Persian, Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil) |

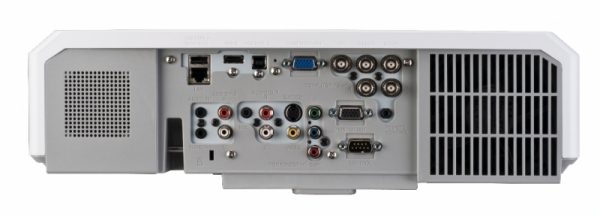

CONNECTIONS
| Digital Input | 1 x HDMI |
| Computer Input | 1 x 15-pin Mini D-sub, 1 x pair BNC |
| Computer Output | 1 x 15-pin Mini D-sub |
| Video Input | 3 x Component RCA 1 x RCA Jack for composite 1 x S-Video |
| Audio Input | 2 x Stereo Mini Jack 1 x pair RCA (L/R) 1 x Microphone Jack |
| Audio Output | 1 x pair RCA (L/R) |
| USB Type A | 1 x USB Type A (for PC-less Presentation) |
| USB Type B | 1 x USB Type B (for USB display, USB mouse control) |
| Wired Network | 1 x RJ-45 |
| Control | 1 x 9-pin D-Sub for RS-232C Control |
| Wired Remote Control Port | Yes |
POWER
| Power Supply | 100~120/220~240V, auto switching |
| Power Consumption | 360W |
| Power Consumption Eco/Standby |
PHYSICAL
| Dimensions (W X H X D) | 400 x 103 x 318mm (excluding feet and extrusions) |
| Weight | 4.6Kg |
| Noise Level | 30dB (Eco Mode)/36dB (Normal Mode) |
| Air Filter | Hybrid |
MISCELLANEOUS
| Lamp indicator light, Power indicator light, Security indicator light |
CERTIFICATION
| UL60950/C-UL, FCC Part 15 Class B, CE, AS/NZS CISPR22 Class A |
ACCESSORIES SUPPLIED
| Remote control with batteries, Computer cable, Power cord, Lens cap, User manual (detail & concise) |
OPTIONAL ACCESSORIES
| Replacement Lamp | DT01171 |
WARRANTY
| Projector Warranty | 3 Years |
| Lamp Warranty | 6 Months** |
| **Where a lamp fails within warranty and a replacement lamp is taken, the warranty for the replacement lamp will be a maximum of 6 months (dependent on warranty hours stated). |
