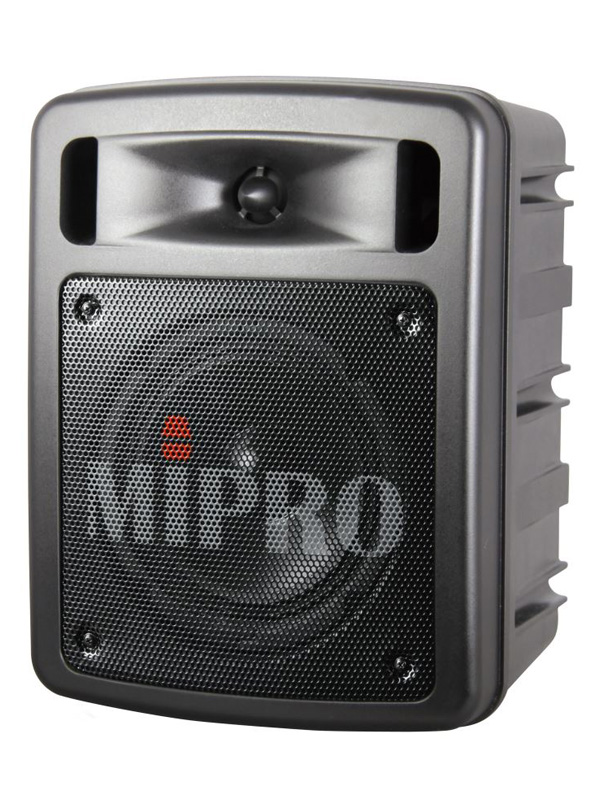

MIPRO MA303DB-5 Portable PA System, 60W (5″/1″ drivers) – Dual Microphone Reciever
MA-303 is a compact, ultra-light, and robust design wireless PA system. This features-loaded and easy-to-use system can be hand-carried, or mounted on a microphone stand and is an excellent public address solution for small to medium crowds.
Best-in-class performance.
Ultra-light, ultra compact and ultra-portable design.
Powerful and crystal-clear sound projection.
Wireless receiver with 16 auto-scannable frequencies.
One-touch Scan & ACT sync button for fast and easy channel set-up.
Built-in bluetooth receiver for wireless audio streaming.
Built-in USB music player & recorder with LCD screen.
Built-in alarm siren provides emergency warnings.
High efficiency class-D amplifier with level limiter drives 2-way speaker system.
AC and lithium-ion rechargeable battery operation.
Up to 11 hours of stand-by time per 4-hour full charge.
A smart 4-segment battery meter for accurate battery reading and charging status.
Transmitters & Microphones
ACT-32H Handheld Transmitter
ACT-32HC Rechargeable Handheld Transmitter
ACT-32T Bodypack Transmitter
ACT-32TC Rechargeable Bodypack Transmitter
MM-107 Sypercardioid Dynamic Microphone
Accessories
MB-10 Lithium-ion Rechargeable Battery (14.8 V / 2.6 AH)
SC-30 Storage and Carry Bag
MS-30 Tripod Microphone Stand
MA-303AXP Active Extension Speaker
MS-90 Wall-Mounting Bracket
Technical Specifications
Portable PA
Max. Power Output 60 Watts
Amplifier Class D
Sensitivity Typical: 92 dB | Maximum: 102 dB
T.H.D. < 1%
Frequency Response 50 Hz – 18 kHz
Speaker 1″ Tweeter & 5″ Woofer
Coverage H 120° × V 70°
Audio Inputs Wired: 6.3 mm (1/4″)
Line-In: 3.5 mm (1/8″)
Bluetooth Connectivity Yes
Audio Output 3.5 mm (1/8″)
Alarm Siren Siren sound with fade-in mode
Installation Microphone stand, table mounted.
Power Supply
AC: External 100 – 240 V AC switching power supply (Max. Power
Consumption: 60 W)
DC & Battery: 14.8 V / 2.6 AH rechargeable lithium-ion battery (MB-10 ×
1)
Charge Time 4 hours (automatic charging management)
Standby Time > 9 hours
Battery Indicator 4-level indicator (25/50/75/100%)
Color Black or white option
Dimensions (W×H×D) 210 × 276 × 165 mm / 8.3 × 11 × 6.5 “
Weight Approx. 2.8 kg / 6.2 lbs , battery included
Wireless System
Receiver Channel Dual
Frequency Range 480 – 934 MHz (country dependent)
Bandwidth 24 MHz
Preset Channels 16
Channel Set-up Scan & ACT sync
Antenna Built-in
Audio Player
Built-in USB Port USB 2.0
USB Play & Record LCD displays track name, number, time, recording status.
