Description

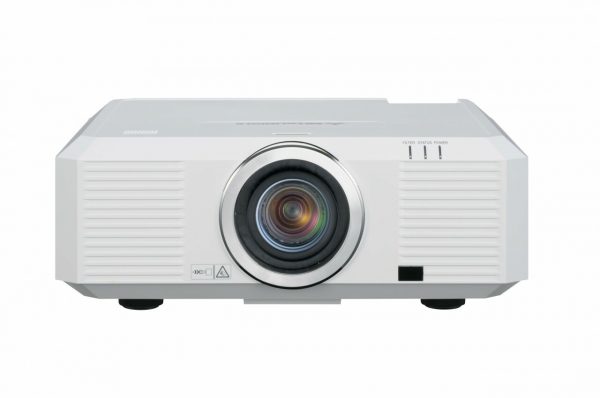

With its high 5000 ANSI lumen brightness and native WUXGA (1920 x 1200 pixel) resolution, the UL7400U from Mitsubishi Electric is perfect for delivering high definition presentations in large areas such as lecture halls and conference rooms.
High 5000 Lumens Brightness
The UL7400U is capable of displaying images at a high 5000 ANSI lumens. This level of brightness makes it ideal for use in large areas such as meeting rooms or lecture halls.
Native WUXGA resolution
With a native 1920 x 1200 pixel resolution, the UL7400U supports a wide variety of resolutions, including 1080P. Viewers can enjoy ultra-high detailed images that are clear and easy to view.
Inorganic LCD Panel
An inorganic LCD panel has been chosen for the UL7400U, which has an increased service life compared to conventional organic liquid-crystal panels.
Super Resolution Technology
This innovative processing algorithm has been designed in-house by Mitsubishi Electric. The technology analyses blurred components of low resolution images, then estimates how a high resolution version of the images would appear and corrects them for fine, detailed reproduction quality.
Original Image Image processed by Super Resolution
High Performance Extra-Low Dispersion Lens
The UL7400U is equipped with a lens system comprised of 17 lenses in 13 groups, including an extra-low dispersion (ED) lens. Compared to commonly used glass lenses, the ED lens delivers improved image sharpness all the way to the edge of the screen.
Automatic Self-Cleaning Filter
Utilising the same technology found in Mitsubishi Electric air-conditioners, the self-cleaning filter prevents dust build-up in the projector. It can be set so the filter rolls every 500, 750 or 1,000 hours, and can also be operated manually.
Lamp Life up to 4000 hours
Designed with optimum lamp temperature control, the lamp UL7400U has a lamp life of up to 4000 hours*. This greatly reduces the overall cost of ownership, as the projector will require fewer lamp changes over the long run.
Network connectivity for remote access and control
The UL7400U is equipped with an RJ45 Ethernet connection, providing an A/V manager with the ease and convenience of remote monitoring and management. When used with Crestron® software, integrated control of up to 250 projectors is possible.The UL7400U is also compatible with AMX Device Discovery and PJLink™ software.
Natural Colour Matrix
In addition to conventional red (R), green (G) and blue (B) colour gradations, the intermediate colours of yellow (Y), magenta (M) and cyan (C) can each be controlled independently.
Quiet 30dBA operation
With a low fan noise of just 30dBA in low lamp mode, the UL7400U gives your audience presentations free of any noise distraction from the projector.
Geometric Correction
The UL7400U includes several different methods for correcting image geometry. Keystone correction fixes trapezoidal distortion, Cornerstone correction fixes diagonal distortion and Curved Surface correction allows for images to be portrayed accurately on curved or round surfaces such as pillars.
Curved Projection
Variety of Optional Lenses with Bayonet Mount
Users can choose between four different lenses to use, with each lens covering a wide range of projection ratios. The UL7400U also comes with a bayonet mounting system, making exchange or replacement of the lens quick and easy.
Product Specs
| Display technology | 0.76″ 3-LCD (with Micro Lens) |
| Resolution | 1920 x 1200 (Total 2,304,000 pixels) |
| Brightness (Maximum) | 5000 ANSI Lumens |
| Contrast | 2000 : 1 with Iris (on/off) |
| Zoom/Focus | Powered Focus & Zoom (Zoom Ratio 1.8:1) |
| Projection Lens | f= 24.0 – 43.2mm , F= 1.8 – 2.6 3.1m@100″(Wide) |
| Off set axis |
1 : 1 (default) with Variable H+V Powered Lens Shift Hd= +/-60% of Image Height (11:-1 ~ -11:1) Wd= +/-30% of Image Width (Maximum values for vertical/horizontal lens shift cannot be set simultaneously) |
| Picture Size | 40 – 300 Wide (inch) |
| Source lamp* | 350W (Shut Off Time 3000Hrs) with Low Mode (264W:Shut Off Time 4000Hrs) |
| Computer compatibility | Resolution ; 640 x 400 (Expand) – 1920 x 1200 (Real), Sync on Green available |
| Video compatibility | NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60 Component Video; 480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz), 1080p(1125p 50/60Hz), (1080i(1250i 50Hz) is not available) SCART (RGB + 1V sync, only Mini D-Sub 15pin Terminal) |

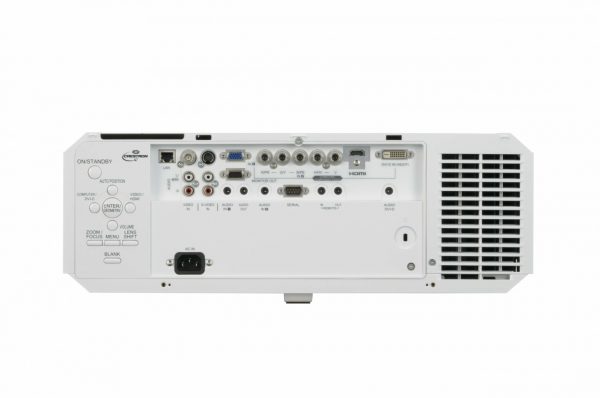

| PC input terminals | 5 BNC x 1, Mini D-Sub 15pin x 1; DVI-D(with HDCP) x 1; Audio: Stereo mini-jack (f3.5mm) x 3 |
| Video input terminals | Composite RCA (BNC) x 1, S-VIDEO (4pin) x 1, HDMI (ver1.3) x 1; Audio: RCA (L/R) x 2 |
| Output Terminals | Mini D-Sub 15 pin x 1; Audio: Stereo mini jack (f3.5mm) x 1 |
| Communication terminals |
LAN(RJ-45) ; x 1 (Projector control) RS-232C ; D-Sub 9pin (IN) (Direct command is available.) Wired remote (IN) ; x 1 (f3.5mm Stereo mini jack) Wired remote (OUT) : x 1 (f3.5mm Stereo mini jack) |
| Scanning Rate | [H]15 – 100 kHz; [V]50 – 120 Hz; [Dot clock] max.162 MHz |
| Fan noise | 30dBA (Lamp low mode) |
| Dimensions (W x H x D) | 481 x 179 x 418mm (including detachable terminal cover) |
| Weight | 10.5 kg |
| Power Consumption |
560W/5.7A 0.3W in Standby Mode (Low), 1.8W when connected to a network via LAN (Low) 5W in Standby mode (Standard) |
| Power supply | AC 100 – 240 V, 50/60Hz |
| Optional lamp | VLT-XL7100LP |
| Optional Accessories | 4 types of interchangeable Projection Lens (OL-XL7100SZ / OL-XL7100LZ / OL-XL7100TZ / OL-XL7100FR) |
| Included accessories |
AC Power Cable :2.9m x 1 RGB cable :1.8m x1 RS-232C cable :1.8m x 1 Remote unit (incl. battery) x 1 Terminal Cover x 1 User Manual (CD-ROM) : Eng / Fra / Ger / Spa / Ita / Chi/ Por Safety Manual : Eng / Fra / Ger / Spa / Ita / Chi/ Kor / Por / Rus(incl. explanation for Quick Start) |
