Description

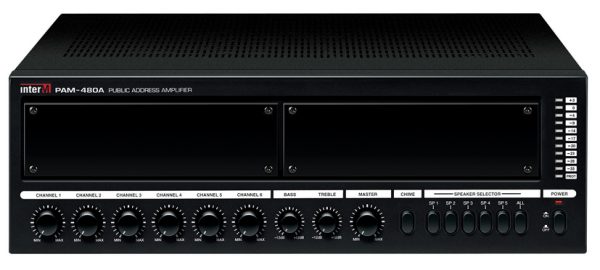

PAM-480A is a high output P.A amplifier that power output terminal is designed with transless method, so it makes high quality sound and features optional tuner, CD, wireless mic, etc available together. It is possible to be announced in selected zones or all zones using speaker selection switch and connecting with remote amplifier makes it possible to broadcast via remote control. Also, it’s convenient to use in a diverse environment by offering a variety of functions such as priority broadcasting, CHIME, EM, etc.

Features

Power output terminal of high output P.A amplifier – Which has no output trans is designed with transless method, so it makes high quality sound
Various Options – Optional tuner, CD, wireless mic are available according to user environment
Remote Control System – It is possible to use by connecting with remote amplifier and to be announced in selected zones via the remote amplifier
Speaker Selection Switch – It is possible to be announced in selected zones or all zones using 5 speaker selection switches and one ALL switch
MIC Priority Broadcasting – It is designed to make it possible to block broadcasting from other sound sources when broadcasting CHI, CH2 because CH1 and CH2 inputs have priority broadcastings
Tone Control Volume – It is possible to control tone considering what is preferred using high or low tone controller according to usable frequency

Specifications

Rated Output Power: 480W (RMS):THD 3%
T.H.D: Less than 0.5% (If half power output is 1kHz)
Speaker Output/Impedance: 480W, 100V/20.8
Preamp Out/Impedance: 1V/600½
Tone Control (100Hz, 10kHz): ±12dB
CH1~CH6 EQ Control (100Hz, 1kHz, 10kHz): ±12dB
Operation Temperature: -10¡C~+40¡C
Power Source: AC100V-120V/220V-240V, 50/60Hz
Weight: 15.5kg
Dimensions: 420(W)_132(H)_360(D)mm

Frequency Response

Amp In: 80Hz~20kHz
Link In: 80Hz~15kHz
CH1~CH6: 120Hz~8kHz
Remote In: 120Hz~8kHz

S/N Ratio

Amp In: Over than 88dB
Link In: Over than 65dB
CH1~CH6: Over than 50dB
Remote In: Over than 50dB

Input sensitivityIimpedance (CH 1~CH 6)

TRIM VR -60dB Position: 1mV/10k½
TRIM VR -16dB Position: 158mV/10k½
Link In: 100mV/10k½
Amp In: 1V/20k½
Remote In: 1V/10k½

Power Consumption

360W(1/8 POWER)
550W(1/3 POWER)
880W(FULL POWER)
