Description
Advanced technologies make your presentations a breeze
This affordable eco-friendly portable projector is packed with high value features, making it ideal for education and small-to-medium-sized businesses.
The 3000-lumen, widescreen model hosts advanced technologies, including DICOM simulation, which allows medical school teachers to display accurate diagnostic images during lessons, and variable audio-out input for connecting to an external speaker or sound system and controlling both through the projector’s remote.
Designed to save energy and reduce your carbon footprint, it also has a carbon savings meter, extended lamp and filter life, quick start-up and direct power off.
From the classroom to the boardroom, the M300WG lets you to start up in seconds, connect with your audience, and shut down with ease.

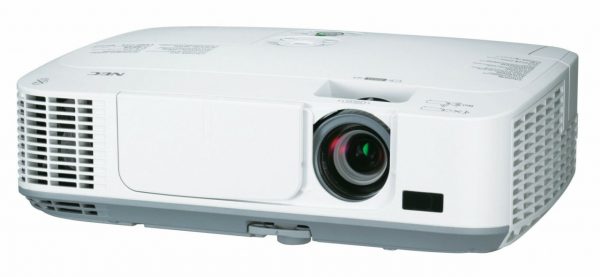

NEC M300WG at a glance
- HDMI input connects you to high-definition sources
- USB Viewer allows you to present without a PC, with a USB flash drive
- Variable audio-out allows the remote control to adjust the volume of self-powered external speakers connected to the projector
- ECO Mode™ technology extends lamp life and lowers power consumption
- Integrated active lens cover mutes audio and video while lowering the lamp power to 25% to conserve energy
- Integrated RJ-45 and/or wireless LAN (optional) quickly connects to the LAN for control or image transmission
- Dual computer inputs ensure quick switching between presentations
- Virtually maintenance-free design includes improved 6000-hour filter life.
Product Specs
| Display | 3 x 1.5 cm (0.59″) p-Si LCD Panel with MLA |
| Native Resolution | 1280 x 800 (WXGA) |
| Aspect Ratio | 16:10 |
| Brightness 1 | 3000 ANSI Lumens (approx. 75% in Eco Mode ) |
| Contrast Ratio 1 | 2000:1 |
| Lamp | 230 W AC (175 W AC Eco Mode ) |
| Lamp Life [hrs] | 4000 (5000 Eco Mode ) |
| Lens | F= 1.7–2.2, f= 17.5–29 mm |
| Projection Factor | 1.3 – 2.2 : 1 |
| Projection Distance [m] | 0.7 – 14.7 |
| Screen Size (diagonal) [cm] | Minimum: 63.5 / 25″ ; Maximum: 762 / 300″ |
| Zoom | Manual |
| Focus Adjustment | Manual |
| Supported Resolutions | 1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 1680 x 1050 (WSXGA+); 1600 x 1200 (UXGA); 1600 x 900 (WXGA++); 1440 x 900 (WXGA+); 1400 x 1050 (SXGA+); 1366 x 768 (WXGA); 1280 x 1024 (SXGA); 1280 x 960 (SXGA); 1280 x 800 (WXGA); 1280 x 768 (WXGA); 1280 x 720 (HDTV 720p); 1152 x 870 (MAC 21″); 1152 x 864 (XGA); 1024 x 768 (XGA); 832 x 624 (MAC 16″); 800 x 600 (SVGA); 720 x 576 SDTV 480p/480i; 720 x 576 (SDTV 576p/576i); 720 x 480 SDTV 576p/576i; 720 x 480 (SDTV 480p/480i); 640 x 480 (VGA/MAC 13″) |
| Frequency | Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz |

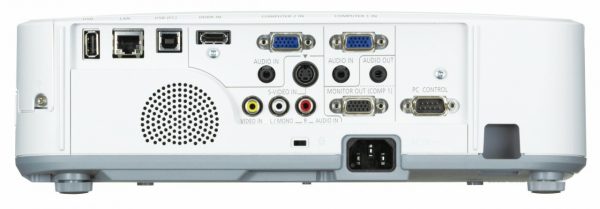

CONNECTIVITY:
| RGB (analog) | Input: 2 x Mini D-sub 15-pin, compatible to component (YPbPr) Output: 1 x Mini D-sub 15 pin |
| HDMI™ | Input: 1x HDMI® (Deep Color, Lip sync) |
| Video | Input: 1 x RCA |
| S-Video | Input: 1 x Mini DIN 4-pin |
| Audio | Input: 2 x 3.5 mm Stereo Mini Jack; 2 x RCA Stereo Output: 1 x 3.5 mm Stereo Mini Jack (variable) |
| PC Control | Input: 1 x D-Sub 9 pin (RS-232) (male) |
| LAN | 1 x RJ45 |
| USB | 1 x Type B; 2 x Type A (USB 2.0 high speed) |
| Video Signals | PAL; PAL60; NTSC; SECAM; NTSC 4.43; PAL-N; PAL-M |
REMOTE CONTROL:
| Remote Control | AV Mute; Aspect Ratio; Audio Control; Auto Adjust; Digital Zoom; Freeze; Help Eco Mode ; ID set; Optional Presentation and Mouse Control; Picture Adjust; Picture Mode; Source Select |
ELECTRICAL:
| Power Supply | 100-240 V AC; 50 – 60 Hz |
| Power Consumption [W] | 302 (Normal) / 236 (Eco) / 8 (Network Stand-by) / 0.4 (Stand-by) |
MECHANICAL:
| Dimensions (W x H x D) [mm] | 339 x 99 x 257 (without lens and feet) |
| Weight [kg] | 2.99 |
| Fan Noise [dB (A)] | 29 / 35 (Eco / Normal) |
ENVIRONMENTAL CONDITIONS:
| Operating Temperature [°C] | 5 to 40 |
| Operating Humidity [%] | 20 to 80 |
| Storage Temperature [°C] | -10 to 50 |
| Storage Humidity [%] | -20 to 80 |
OPTIONAL ACCESSORIES:
| Optional Accessories | Lamp (NP16LP); Wireless LAN module (NP02LM2) |
ERGONOMICS:
| Safety and Ergonomics | CE; EuP; TÜV GS; RoHS ; TCO; Gost-R |
| Speakers [W] | 1 x 10 (mono) |
WARRANTY:
| Projectors | 5 years limited warranty parts and labour |
| Lamp | 6 months, max. 2000 hrs |
SHIPPING CONTENT:
| Shipping Contents | IR Remote Control (RD-448E); Mini D-SUB Signal Cable (1.8 m); Power Cord (1.8 m); Utility software; Security Sticker; Soft Case; Users Manual on CD-ROM; Quick Setup Guide |
