Description
Get great performance while saving the environment.
Advanced Eco features help to substantially lower your operating cost without compromising on quality and flexibility.
The M300XSG is particulary suited for classrooms and medium sized meeting rooms.
- Get Great Performance – while not compromising on quality and ease of use.
- Intuitive Use – of latest Eco and projection technology due to user-centric design.
- Large Flexibility in positioning the projector and minimized cost for replacements.
- Save the Environment – with latest Eco technology by minimizing your power consumption and consumables replacements.
- Special Characteristics – Auto Eco Mode ; Auto Power ON/OFF; Automatic and manual Keystone Correction (V= +/-30°); Carbon Savings Meter ; Colour Management ; Content Transmission via Network; Control and administration via LAN; DICOM Simulation ; Direct Power-Off Function; High Altitude Mode; Kensington security slot; Keypad Lock; Lens Cover; Magnify; Off-Timer; Optional User Logo; Optional WLAN; OSD with 27 languages; Password Security System; Quick On/Off; RS-232 Control; Security Bar; USB Display;USB Viewer for JPEG; Virtual Remote for direct PC control; Wall Colour Correction
Product Specs
| Display |
3 x 1.6 cm (0.63″) p-Si LCD Panel with MLA |
| Native Resolution |
1024 x 768 (XGA) |
| Aspect Ratio |
4:3 |
| Brightness |
3000 ANSI Lumen (approx. 80% in Eco Mode ) |
| Contrast Ratio |
2000:1 |
| Lamp |
180 W AC (145 W AC Eco Mode ) |
| Lamp Life [hrs] |
5000 (6000 Eco Mode ) |
| Lens |
F= 1.7–2.2, f= 17.5–29 mm |
| Projection Factor |
1.3 – 2.2 : 1 |
| Projection Distance [m] |
0.6 – 13.8 |
| Screen Size (diagonal) [cm] |
Minimum: 63.5 / 25″; Maximum: 762 / 300″ |
| Zoom |
Manual |
| Focus Adjustment |
Manual |
| Supported Resolutions |
1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 1680 x 1050 (WSXGA+); 1600 x 1200 (UXGA); 1600 x 900 (WXGA++); 1440 x 900 (WXGA+); 1400 x 1050 (SXGA+); 1366 x 768 (WXGA); 1360 x 768 (WXGA); 1280 x 1024 (SXGA); 1280 x 960 (SXGA); 1280 x 800 (WXGA); 1280 x 768 (WXGA); 1280 x 720 (HDTV 720p); 1152 x 870 (MAC 21″); 1152 x 870 (MAC 21″); 1152 x 864 (XGA); 1024 x 768 (XGA); 800 x 600 (SVGA); 720 x 576 SDTV 480p/480i; 720 x 576 (DVD progressive); 720 x 480 SDTV 576p/576i; 720 x 480 (SDTV 480p); 720 x 480 (DVD progressive); 640 x 480 (VGA/MAC 13″) |
| Frequency |
Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz |

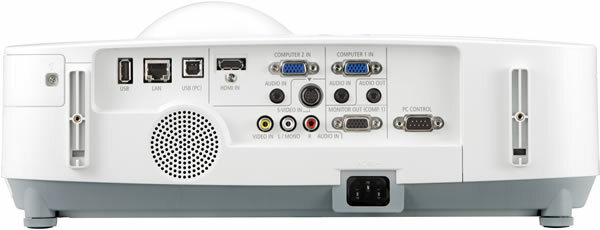

CONNECTIVITY
| RGB (analog) |
Input: 2 x Mini D-sub 15-pin, compatible to component (YPbPr)
Output: 1 x Mini D-sub 15 pin |
| HDMI™ |
Input: 1 x HDMI™ (Deep Color, Lip sync) |
| Video |
Input: 1 x RCA |
| S-Video |
Input: 1 x Mini DIN 4-pin |
| Audio |
Input: 2 x 3.5 mm Stereo Mini Jack; 2 x RCA Stereo
Output: 1 x 3.5 mm Stereo Mini Jack (variable) |
| PC Control |
Input: 1 x D-Sub 9 pin (RS-232) (male) |
| LAN |
1 x RJ45 |
| USB |
1 x Type B; 2 x Type A (USB 2.0 high speed) |
| Video Signals |
PAL; PAL60; NTSC; SECAM; NTSC 4.43; PAL-N; PAL-M |
REMOTE CONTROL
| Remote Control |
Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Freeze; Help Eco Mode ; ID set; Picture Adjust; Picture Mode; Presentation and Mouse Control; Source Select |
ELECTRICAL
| Power Supply |
100-240 V AC; 50 – 60 Hz |
| Power Consumption [W] |
239 (Normal) / 193 (Eco) / 8 (Network Stand-by) / 0.4 (Stand-by) |
MECHANICAL
| Dimensions (W x H x D) [mm] |
339 x 99 x 257 (without lens and feet) |
| Weight [kg] |
2.9 |
| Fan Noise [dB (A)] |
27 / 34 (Eco / Normal) |
ENVIRONMENTAL CONDITIONS
| Operating Temperature [°C] |
5 to 40 |
| Operating Humidity [%] |
20 to 80 |
| Storage Temperature [°C] |
-10 to 50 |
| Storage Humidity [%] |
-20 to 80 |
OPTIONAL ACCESSORIES
| Optional Accessories |
Lamp (NP15LP); Wireless LAN module (NP02LM2) |
ERGONOMICS
| Safety and Ergonomics |
CE; ErP; TÜV GS; RoHS ; TCO ; Gost-R |
| Speakers [W] |
1 x 10 (mono) |
WARRANTY
| Projectors |
3 years pan-European service |
| Lamp |
6 months, max. 1000 hrs |
SHIPPING CONTENT
| Shipping Contents |
IR Remote Control (RD-448E); Mini D-SUB Signal Cable (1.8 m); Power Cord (1.8 m); Utility software; Security Sticker; Soft Case; Users Manual on CD-ROM; Quick Setup Guide |
