Description

Brightness, flexibility and advanced  functionality

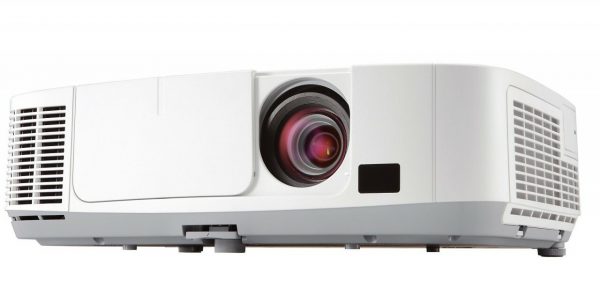

Maximise the brightness of your presentations with the NEC P420XG, an entry-grade professional installation projector loaded with advanced technologies, that comes equipped with lots of features for simple installation and maintenance. It’s ideal for corporate boardrooms, higher education classrooms, and government training rooms and is packed with handy functions. So you can produce high-quality presentations that look great, and are both cost-effective and eco-friendly.

Highly adaptable

Some of its benefits, like the powerful 10 W monaural speakers, simple connectivity, quick start, direct power off and projection of computer-free presentations, provide great flexibility and make it really easy to use. The NEC P420XG is an excellent all-round professional projector.

NEC P420XG at a glance

• HDMI input connects you to high-definition sources
• variable audio-out allows the remote control to adjust the volume of self-powered external speakers connected to the projector
• vertical lens shift enables flexible projector placement
• Windows Network Projector, Remote Desktop and File Viewer
• ECO Mode™ technology helps extend lamp life and lowers power consumption
• supports wired or wireless LAN
• virtually maintenance-free design includes 3,500-hour filter life
• Crestron RoomView® support.

Product Specs

Display

Display: 3 x 1.6 cm (0.63″) p-Si LCD Panel with MLA
Native Resolution: 1024 x 768 (XGA)
Brightness: 1 4200 ANSI Lumens (approx. 80% in Eco Mode )
Contrast Ratio: 1 2000:1
Lamp: 265 W UHP AC (195 W UHP AC Eco Mode )
Lamp Life [hrs]: 3000 (3500 Eco Mode )
Lens: F= 1.7–2.07, f= 18.9–22.7 mm
Projection Factor: 1.3 – 2.2 : 1
Projection Distance [m]: 0.7 – 11
Screen Size (diagonal) [cm] Minimum: 53; Maximum: 762
Zoom: 1 – 1.2
Focus Adjustment: Manual

Supported Resolutions: 1920 x 1080 (HDTV 1,080i/60, HDTV 1,080i/50); 1600 x 1200 (UXGA); 1400 x 1050 (SXGA); 1280 x 1024 (SXGA); 1280 x 720 (HDTV 720p); 1152 x 870 (Mac 21″); 1024 x 768 (XGA) compressed; 832 x 624 (Mac 16″); 800 x 600 (SVGA); 720 x 576 (DVD progressive); 720 x 480 (DVD progressive); 720 x 480 (SDTV 480p); 640 x 480 (VGA/Mac 13″)

Frequency

Horizontal: 15–100 kHz (RGB: 24 kHz); Vertical: 48 – 120 Hz

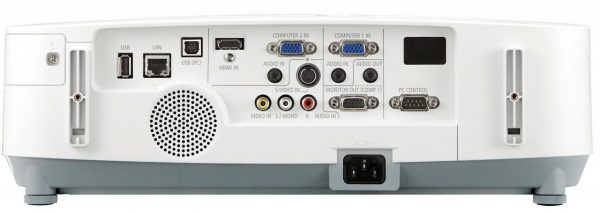

Connectivity

RGB (analog) Input: 2 x Mini D-sub 15 pin; 2 x Mini D-sub 15-pin, compatible to component (YPbPr)
Output: 1 x Mini D-sub 15 pin
HDMI® Input: 1 x HDMI® (Deep Color, Lip sync) with HDCP
Video Input: 1 x RCA
S-Video Input: 1 x Mini DIN 4-pin
Audio Input: 1 x HDMI audio; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 1 x RCA Stereo for Video and S-Video
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
PC Control Input: 1 x D-Sub 9 pin (RS-232) (male)
USB 2 x Type A (USB 2.0 high speed)
Video Signals: PAL; PAL60; NTSC; SECAM; NTSC 4.43; PAL-N; PAL-M

Remote Control

Aspect Ratio; Audio Control; Auto Adjust; Freeze-function; HDMI ; Help-function; Lamp Mode Control; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select

Electrical

Power Supply: 100-240 V AC; 50 – 60 Hz
Power Consumption [W]: 343 Normal Mode; 264 Eco Mode ; 9 Network Stand-by Mode; 0.4 Stand-by Mode

Mechanical

Dimensions (W x H x D) [mm]: 310 x 125 x 289 (without lens and feet)
Weight [kg]: 3.9
Fan Noise [dB (A)]: 30 / 36 (Eco / Normal)

Optional Accessories

Cable Cover (NP01CV); Lamp (NP17LP); Wireless LAN module (NP02LM2)

Ergonomics

Safety and Ergonomics: CE; ErP; TÜV GS; RoHS
Speakers [W]: 1 x 10 (mono)

Warranty

Projectors: 5 years limited warranty
Lamp: 6 months, max. 2000 hrs

Shipping Content

Projector; IR Remote Control (adressable RD – 448E); Mini D-SUB Signal Cable; Power Cord; Users Manual on CD-ROM; Quick Setup Guide
