Description

Full of professional features for the perfect presentation

An advanced professional installation projector ideal for corporate and higher education users that’s highly-compatible, easy to install and use, cost-effective and eco-friendly. It’s integrated RJ45, high-speed wireless LAN is loaded with simple asset management applications to help you present seamlessly without having to worry about the technology.

A first in projector technology

NEC has created the industry’s first built-in stacking correction capabilities, for up four projectors. This lets you boost an image’s brightness to 24,000 lumens, making it perfect for larger-sized screens and presentation venues with lots of ambient light.

NEC PA600XG at a glance

• ECO Mode™ technology for long lamp life and lower power consumption
• 6,000-lumen brightness enhances images for most applications
  HQV™ technology gives superior home theatre video processing
• Windows Network Projector function simplifies presenting from any computer, whether local or remote
• geometric correction allows you to project square images onto uneven surfaces without them distorting
• AutoSense™ automatically syncs with any computer signal and features one-touch image optimisation
• choice of 5 bayonet-style lenses are quick and easy to change.
• Stacking correction capabilities (up to four projectors) can boost image brightness up to 24,000 lumens.

Product Specs

OPTICAL:

Display Technology    0.75″ LCD w/ MLA
Light Output(Lumens)    5500 normal / Eco = approx. 80% of normal mode
Resolution

Native    WXGA 1280 x 800
Maximum    WUXGA 1920 x 1200
Contrast Ratio (up to)    2000:1
Lamp Type    330W AC / 264W eco
Lamp Life (up to)    3000 hours normal / 4000 hours eco
Screen Size (diagonal)    25 to 500 in. / 0.64 to 12.7m
Throw Ratio    Variable
Projection Distance    2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle    10.3 to 10.8° tele / 13.7 to 14.5° wide
Lens

Zoom    1 to 1.33
Focus    Manual
F number, fnumber    F=1.7 to 2.2, f=24.4 to 32.5mm
Shift    Mechanical -0.1 to +0.5 vertical, +/-0.3 horizontal
Keystone Correction    +/- 40° horizontal, +/- 30° vertical

SIGNAL COMPATIBILITY/CONNECTIVITY:

Scan Rate


Horizontal    15-108 kHz
Vertical    48-120 Hz
Supported Video Standards    NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility    480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility    VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility    Yes

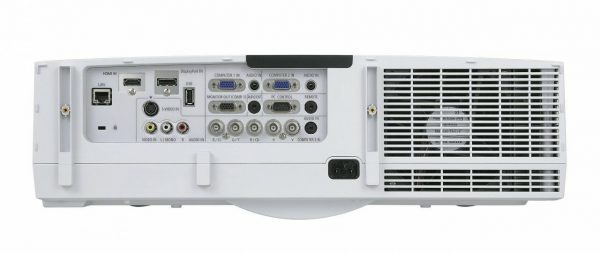

Input/Output Terminals

RGB1(analog)    VGA 15-pin D-sub
RGB2(analog)    VGA 15-pin D-sub
RGB3(analog)    5-BNC
RGB4(digital)    HDMI w/ HDCP
RGB5(digital)    DisplayPort
Video 1    RCA
Video 2    S-Video
Audio 1    Mini stereo
Monitor out    VGA 15-pin D-sub
Audio out    Yes
Audio     10W mono
External Control    RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatiblity    Separate Sync / Composite Sync / Sync on G
Networking    RJ-45 Monitoring

ELECTRICAL:

Power Requirements    100-240V AC, 50/60 Hz
Input Current    5.1A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving)    464W / 372W / 16W / 0.2W

MECHANICAL:

Optional Lenses    NP01FL, NP02ZL, NP03ZL, NP04ZL, NP05ZL
Installation Orientation    Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH)    19.7 x 14.4 x 6.5 in. / 499 x 366 x 164mm
Net Weight    17 lbs. / 7.7 kgPounds (lbs.)
Fan Noise    38 dB normal / 31 dB eco
Regulations    USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM

ENVIRONMENTAL:

Operating Temperature    41-104°F / 5-40°C
Humidity    20-80% non-condensing
Storage    -14-122°F / -10-50°C

LIMITED WARRANTY:

5 years limited warranty.

ADDITIONAL FEATURES:

Automatic keystone correction
Wireless LAN
Active Lens Cover
USB Viewer
Cornerstone
Geometric Correction
4000 hour Filter Life
Auto power on
ECO Mode technology
Closed captioning
Variable audio out
Carbon savings meter
Virtual Remote
Sleep timer
Quick power-off
Built-in wall color correction
Advanced AccuBlend
AutoSense

SHIPS WITH:

Remote control
Batteries
Power cord
RGB signal cable
Dust Cap for lens
User manual
Quick Start Guide
Product registration card
Wired and wireless network setup guide
Lens anti-theft screw
