Description

Full 3D effect from a single projector

For the ultimate 3D experience, the NEC V300WG lets you project 3D images from one projector without special screens, filters or emitters. All you need are active LCD shutter glasses to get the full 3D effect.

This 3D-ready DLP® projector with DLP®-Link™ technology is the easy alternative to traditional 3D stereo projection – ideal for classrooms, small meeting rooms, and mobile or co-operative applications.

NEC V300WG at a glance

• 3D-ready, future-proof DLP®-Link™ technology with 120Hz
• ECO Mode™ technology, helping extend lamp life and lowering power consumption
• carbon savings meter, calculating the positive effects of operating the projector in ECO Mode
• control and monitoring via an RS-232 port.
• higher efficiency, lower power consumption – full ERP compliance
• long lamp life – up to 5,000 hours
• Virtual Remote for direct PC control
• special characteristics – including 6-segment colour wheel, auto power start, BrilliantColor™ and VIDI technology, Crestron RoomView, manual vertical keystone correction (V= ±40°), off-timer, plug & play, quick-start/direct-power-off function

Product Specs


• Display Technology: 1 x 1.4 cm (0.55″) DDR DMD Chip (Aspect Ratio 4:3)
• Native Resolution: 1280 x 800 (WXGA)
• Brightness: 3000 ANSI Lumen
• Contrast Ratio: 2000 : 1
• Lamp: 225 W AC
• Lamp Life (Hrs): 3000 (5000 Eco Mode)
• Projection Factor: 1.95 – 2.15 : 1
• Projections Distance (m): 1.2 – 13
• Screen Size (diagonal) (cm): Minimum: 76; Maximum: 762
• Zoom: Manual
• Focus Adjustment: Manual
• Supported Resolutions: 1920 x 1080; 1600 x 1200; 1400 x 1050; 1280 x 1024; 1280 x 960; 1280 x 720; 1024 x 768; 832 x 624; 800 x 600; 640 x 480
• Frequency: Horizontal: 15 – 100 kHz; Vertical: 50 – 120 Hz

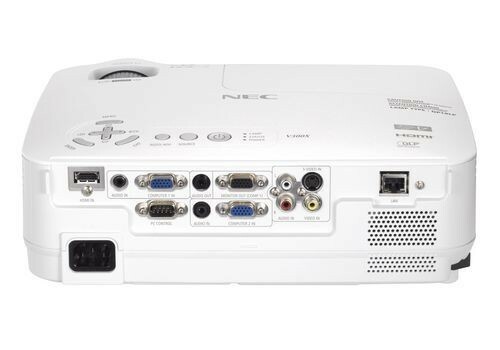

Connectivity

• RGB (Analog)Input: 2 x Mini D-sub 15-pin, compatible to component (YPbPr)
• Output: 1 x Mini D-sub 15 pin
• HDMI®:Input: 1 x HDMI® (Deep Color, Lip sync)
• Video: Input: 1 x RCA
• S-Video: Input: 1 x Mini DIN 4-pin
• Audio: Input: 2 x 3.5 mm Stereo Mini Jack
• Output: 1 x 3.5 mm Stereo Mini Jack
• PC Control: Input: 1 x D-Sub 9 pin (RS-232) (male)
• LAN: 1 x RJ45
• Video Signals: PAL; PAL60; NTSC; SECAM; NTSC 4.43; PAL-N; PAL-M

Remote Control

• Aspect Ratio; Audio Control; Auto Adjust; Automatic Picture Adjustment; Freeze-function; Help-function; ID set; Keystone Correction; Lamp Mode Control; Magnify-function; Picture Adjust; Picture Mode; Picture Mute; Source Select

Electrical

• Power Supply: 100-240 V AC; 50 – 60 Hz
• Power Consumption (w): 0.5 Stand-by Mode

Mechanical

• Dimensions (W x H x D) (mm): 310 x 95 x 247 (without lens and feet)
• Weight (kg): 2.5
• Fan Noise (dB (A)): 31 / 34 (Eco / Normal)

Optional Accessories

• 3D Starter Kit (NP01SK3D); DLP -Link 3D Glasses (NP01GL); Lamp (NP18LP); Universal Ceiling Mounts (NP01/02/03/04/05UCM)

Ergonomics

• Safety and Ergonomics: CE; ErP; TUV GS; RoHS
• Speakers (w): 1 x 7 (momo)

Warranty

• Lamp: 6 months, max. 1000 hrs

Shipping Content

• Projector; IR Remote Control (RD-443E); Mini D-SUB Signal Cable (1.8 m); Power Cord; Users Manual on CD-ROM; Quick Setup Guide; Lens Cap
