Description
Eco-conscious, Full-HD ready and featuring 5,000 lumens of brightness
This projector will provide long hours of maintenance-free operation. It features a high degree of installation flexibility, and low power consumption modes, making it suitable for seminar rooms, multipurpose rooms in education and also for corporate conference rooms.
Outstanding images in stunning Full-HD quality

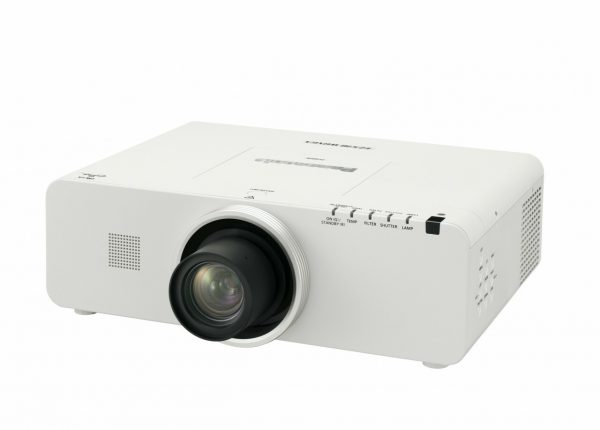

The PT-EZ570 showcases the latest in 3LCD display technology, including a native WUXGA (1920 x 1200) resolution, 5,000 lumens of brightness and an outstanding 5000:1 contrast ratio. Image quality is furthered enhanced by Daylight View Basic technology to achieve sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms. A built-in sensor measures the ambient light, and the Daylight View Basic function adjusts the halftone colour and brightness level according to the surrounding illumination.
Eco-conscious engineering and design
This projector is equipped with an Eco Filter which does not require cleaning for up to 12,000 hours and has a lamp replacement cycle of up to 4,000 hours. The use of LCD panels with inorganic alignment layers further enhances the overall durability of the unit. With the Intelligent Lamp Control system that automatically adjusts the lamp output in accordance with the brightness of the projected image and the Eco Management feature, overall power consumption with the PT-EZ570 is significantly reduced.
Excellent installation and operation flexibility
The zoom lens, powered horizontal/vertical lens shift and interchangeable lenses allow for a flexible vertical 360 degree installation, so you can adapt to a wide range of room sizes and shapes. When lights or ventilation holes are located in the ceiling mounting site, you can simply relocate the projector to avoid them. And when replacing existing projectors, this can reduce costs by permitting the use of existing mounting positions and cablings.
A wired LAN system makes remote control simple
A web browser on a computer connected through a wired LAN system lets you remotely operate the PT-EZ570. An e-mail messaging function can also notify you when a lamp needs replacement, and indicate the overall projector status. In addition, Multi Projector Monitoring and Control Software is included for monitoring and controlling multiple Panasonic projectors from a single PC. The wired LAN terminal is compatible with PJLink™ (Class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors.
Product Specs
| Model | PT-EZ570E | ||||
|---|---|---|---|---|---|
| Power supply | 100 – 240 V AC, 50/60 Hz | ||||
| Power consumption | 490 W (0.4 W with STANDBY MODE set to ECO,*1 11 W with STANDBY MODE set to NETWORK.) |
||||
| LCD panel | Panel size | 19.2 mm (0.76 inches) diagonal (16:10 aspect ratio) |
|||
| Display method | Transparent LCD panel (x 3, R/G/B) | ||||
| Drive method | Active matrix | ||||
| Pixels | 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels |
||||
| Lens | PT-EZ570 / EW630 / EX600 |
Powered zoom (throw ratio 1.7–2.8:1), powered focus F 1.7–2.3, f 26.9–45.4 mm | |||
| PT-EZ570L / EW630L / EX600L | Optional powered zoom/focus lenses and fixed-focus lens | ||||
| Lamp | 330 W UHM lamp x 1, lamp replacement cycle: 4,000 hours*2 | ||||
| Screen size (diagonal) | 1.02–10.16 m (40–400 inches) (16:10 aspect ratio) |
||||
| Color reproducibility | Full color (1,073,741,824 colors) |
||||
| Brightness*3 | 5,000 lm (lamp power: Auto/Normal) |
||||
| Center-to-corner uniformity*3 | 90% | ||||
| Contrast*3 | 5,000:1 (full on/off, lamp power: Auto/Normal, iris: On) | ||||
| Resolution | 1,920 x 1,200 pixels*4 | ||||
| Scanning frequency | HDMI/DVI-D | (Horizontal) 26–80 kHz; (Vertical) 23–85 Hz; (Dot clock) 162 MHz or lower | |||
| RGB (analog) | (Horizontal) 15–120 kHz; (Vertical) 48–100 Hz; (Dot clock) 230 MHz or lower (Signals exceeding the dot clock rate of 163 MHz are downsampled.) |
||||
| YPBPR (YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1035/60i] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 28.13 kHz, fV: 50 Hz [1080/25sF] fH: 27.00 kHz, fV: 48 Hz [1080/24sF] fH: 33.75 kHz, fV: 60 Hz [1080/30sF] fH: 56.25 kHz, fV: 50 Hz [1080/50p] fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 28.13 kHz, fV: 25 Hz [1080/25p] fH: 27.00 kHz, fV: 24 Hz [1080/24p] fH: 33.75 kHz, fV: 30 Hz [1080/30p] fH: 67.50 kHz, fV: 60 Hz [1080/60p] |
||||
| Video/S-Video | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
||||
| Optical axis shift*5 | Vertical | ±60% from center of screen (powered) | |||
| Horizontal | ±10% from center of screen (powered) | ||||
| Keystone correction range | Horizontal: ±30°*6, vertical: ±30°*6 |
||||
| Installation | Ceiling/floor, front/rear | ||||
| Built-in speaker | 3.7 cm round shape x 1, output power 10.0 W (monaural) | ||||

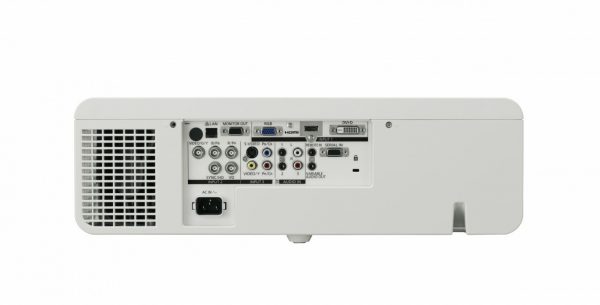

| Terminals | INPUT 1 | DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) |
||
| HDMI IN | HDMI 19-pin x 1 (Deep Color, compatible with HDCP) | ||||
| RGB IN | D-sub HD 15-pin (female) x 1 (RGB x 1) | ||||
| INPUT 2 | RGB 5BNC IN/ VIDEO IN |
BNC x 5 (RGB/YPBPR/YCBCR x 1), shared with VIDEO IN (BNC x 1) (composite video) |
|||
| INPUT 3 | COMPONENT/ VIDEO IN |
RCA x 3 (YPBPR/YCBCR/composite video x 1) | |||
| S-VIDEO IN | Mini DIN 4-pin x 1 | ||||
| MONITOR OUT | D-sub HD 15-pin (female) x 1 (RGB x 1) | ||||
| AUDIO IN 1 | M3 x 1 (L-R x 1) | ||||
| AUDIO IN 2 | M3 x 1 (L-R x 1) | ||||
| AUDIO IN 3 | RCA pin x 2 (L/R x 1) for VIDEO/S-VIDEO input | ||||
| AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | ||||
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | ||||
| REMOTE IN | M3 Jack x 1 (for wired remote control) | ||||
| LAN | RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink™ (class 1)) |
||||
| Cabinet materials | Molded plastic (PC + ABS) | ||||
| Dimensions (W x H x D) |
PT-EZ570 / EW630 / EX600 | 489.5 x 164*8 x 434 mm (19.3″ x 6.5″*8 x 17.1″) (with supplied lens) | |||
| PT-EZ570L / EW630L / EX600L | 489.5 x 164*8 x 370 mm (19.3″ x 6.5″*8 x 14.6″) (without lens) | ||||
| Weightl*7 | PT-EZ570 / EW630 / EX600 | Approximately 10.3 kg (22.7 lbs) (with supplied lens) | |||
| PT-EZ570L / EW630L / EX600L | Approximately 9.6 kg (21.2 lbs) (with supplied lens) | ||||
| Noise level*7 | 37 dB (Lamp power: Normal); 31 dB (Lamp power: Eco1 or Eco2) | ||||
| Operating temperature | 0°C–40°C (32°F–104°F)*9 | ||||
| Operating humidity | 20% – 80% (no condensation) | ||||
| Supplied accessories | Power cord x 1 ( x 2 for PT-EZ570E/EZ570EL, PT-EW630/EW630EL, PT-EX600E/EX600EL), power cord holder/power cord cover x 1, wireless/wired remote control unit x 1, batteries (AAA/R03/LR03 type x 2), computer cable (1.8 m, for VGA) x 1, Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) x1, |
||||
