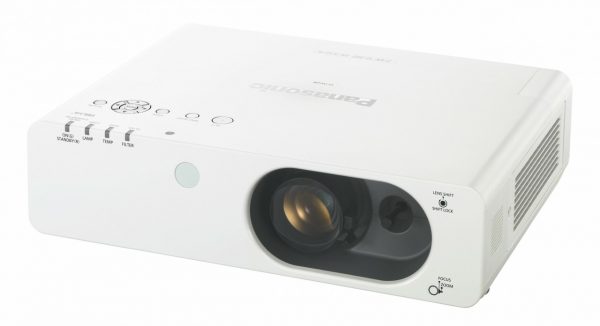

The Panasonic PT-FW430 Series boasts high performance with minimal maintenance over time. Its highly reliable optical system and dust-resistant structure provide a long operating
life. Advanced Panasonic technologies, such as Daylight View Premium, ensure excellent projected images. The PT-FW430 Series models are equipped with many ecology-conscious
features, starting with Eco Management functions that reduce wasteful power consumption. These high-quality projectors also support wireless projection from not only PCs but also iPads and other devices for easy use (optional).*1 Superb installation flexibility, thanks to the 2x zoom lens and horizontal/vertical lens shift, also makes the PT-FW430 Series ideal for both first-time installation and as replacement units.

An original lamp drive system and a more durable new lamp unit help maintain optimal lamp performance for longer-lasting brightness than predecessor models.* This has resulted in a 6,000-hour lamp replacement cycle.

Extreme care has been taken in designing the dust-resistant structure inside the PT-FW430 Series cabinet. The lens section, where dust enters, has been protected and separated from the optical block, which is the heart of the projector. Integrated molding of internal cabinet parts has also been increased to further improve sealing performance



The Eco Filter consists of two Micro Cut Filters (electrostatic filters), a pre-filter and a main filter, which use an ion effect to collect extremely small dust particles. The pre-filter has a honeycomb configuration and the main filter is pleated to achieve a large surface area that raises its dust collecting performance. Thanks to these features, the Eco Filter has a replacement cycle of 12,000 hours. performance. The intake and exhaust airflow paths are straight, and the intake airflow path is provided with a new Eco Filter unit to guard the optical components from dust. This dust-resistant design keeps the air inside the projector clean for long periods of time and minimi..es brightness degradation. The Eco Filter’s long replacement cycle*4 of 12,000 hours reduces the hassle of maintenance. And, as an environmental consideration, the filter can be washed with water and reused.

The PT-FW430 Series projectors’ optical block maintains a high level of performance over time, due to the use of inorganic materials in the LCD panels and polarisers, thus achieving a replacement cycle of 12,000 hours. It also makes them the logical choice for a truly dependable LCD projector system.

The frequency of the video signal is analysed for each scene, and distribution data is extracted for the ultra high, high, medium and low-range frequencies. This unique Panasonic image correction circuit optimally enhances each area of the screen. High-precision detection is applied from 2-dimensional horizontal/vertical data to produce more natural, lifelike images with high definition.

This function corrects the image quality to project sharp, clear images even in brightly lit rooms. A luminance sensor measures the ambient brightness, and a real-time adjustment function optimises sharpness and brightness



Simulated image with Daylight View Premium turned off.

Simulated image with Daylight View Premium turned on.



according to the surroundings. This adjustment function also works together with the Detail Clarity Processor 3 to enhance the realism and vividness of projected images. This makes images easier to view and offers high contrast.

A number of functions are provided to reduce power consumption. They adjust the brightness according to ambient light conditions, and reduce the lamp power when there is no signal input or the projector is in AV Mute mode. You can easily set the Eco Management functions according to operating conditions by using the ECO button on the remote control



“ECO” button on the remote control



Under bright conditions – Under dark conditions

The PT-FW430 Series has attained a low stand-by power level of 0.4 W*8 (standby mode: ECO). It also helps to slash running costs, and reduces environmental impact.

Power supply – 330 W (0.4 W at 220 –240 V AC, 0.3 W at 100 –120 V AC when standby mode set to eco*1, 9 W when standby mode set to normal, 20 W when standby mode set to normal and audio monitor out.)



18.9 mm (0.74 inches) diagonal (16:10 aspect ratio) Transparent LCD panel (× 3, R/G/B) 1,024,000 (1,280 × 800) × 3, total of 3,072,000 pixels Stripe



Manual 2× zoom (throw ratio: 1.34 – 2.68:1), manual focus F 1.7– 2.6, f 21.6– 43.0 mm

250 W UHM lamp (The lamp replacement cycle is 6,000 hours.*2 )



0.84 –7.62 m (33 – 300 inches), 16:10 aspect ratio



3,500 lm (lamp mode: normal)



80%



600:1 (full on/full off)



1,280 × 800 pixels (Input signals that exceed this resolution will be converted to 1,280 × 800 pixels.)







fH: 27.0 kHz – 68.7 kHz; fV: 24.0 Hz – 85.0 Hz; dot clock: 25.2 MHz– 148.5 MHz

fH: 15 .6 kHz – 91.1 kHz; fV: 24.0 Hz – 85.1 Hz; dot clock: 162 MHz or lower



fH: 15.75 kHz; fV: 60 Hz (480i [525i])
fH: 31.50 kHz; fV: 60 Hz (480p [525p])
fH: 15.63 kHz; fV: 50 Hz (576i [625i])
fH: 31.25 kHz; fV: 50 Hz (576p [625p])
fH: 37.50 kHz; fV: 50 Hz (720 [750]/50p)
fH: 45.00 kHz; fV: 60 Hz (720 [750]/60p)

fH: 33.75 kHz; fV: 60 Hz (1080 [1125]/60i)
fH: 28.13 kHz; fV: 50 Hz (1080 [1125]/50i)
fH: 27.00 kHz; fV: 24 Hz (1080 [1125]/24p)
fH: 33.75 kHz; fV: 30 Hz (1080 [1125]/30p)
fH: 67.50 kHz; fV: 60 Hz (1080 [1125]/60p)
fH: 56.25 kHz, fV: 50 Hz (1080 [1125]/50p)



fH: 15.75 kHz; fV: 60 Hz (NTSC/NTSC4.43/PAL-M/PAL60), fH: 15.63 kHz; fV: 50 Hz (PAL/PAL-N/SECAM)



±51% from centre of screen (manual)

±24% from centre of screen (manual)



Vertical: ±30°



Ceiling/desk, front/rear



Output power: 5.0 W (monaural)



HDMI 19-pin × 1 (Deep Colour, compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/60p, 1080/50p,
VGA (640 × 480) –WSXGA+ (1,680 × 1,050), compatible with non-interlaced signals only;
dot clock: 25.2 –146.25 MHz;
Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
DVI-I 29-pin × 1
Digital: (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/60p, 1080/50p,
VGA (640 × 480) –WSXGA+ (1,680 × 1,050), compatible with non-interlaced signals only;
dot clock: 25.2 –146.25 MHz;
Analogue: (RGB/YPBPR (YCBCR))
D-sub HD 15-pin (female) × 1 (RGB/YPBPR × 1)
RCA pin × 1 (composite video)
Mini DIN 4-pin × 1 (S-Video)
M3 × 1 (L, R × 1), 0.5 Vrms
M3 × 1 (L, R × 1), 0.5 Vrms
RCA pin × 2 (L, R × 1), 0.5 Vrms
M3 × 1 (L, R × 1) (monitor out: 0 – 2.0 Vrms, variable)
D-sub 9-pin (female) × 1 for external control (RS-232C compliant)
RJ-45 × 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
Connector for optional wireless module ET-WM200E × 1



Cabinet materials – Moulded plastic (PC+ABS)

Dimensions (W × H × D) – 430 × 125.5*4 × 323 mm (16-15/16½ × 4-15/16½ *4 × 12-23/32½ ) (Protruding parts not included)

Weight – Approximately 6.0 kg (13.2 lbs.)

Operating environment – Operating temperature: 0°C– 40°C (32°F– 104°F)*5; operating humidity: 20%–80% (no condensation)

Supplied accessories –  Power cord, wireless remote control unit, batteries (R6 type × 2), software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software Ver. 2.5, Wireless Manager ME 5.5
