Description

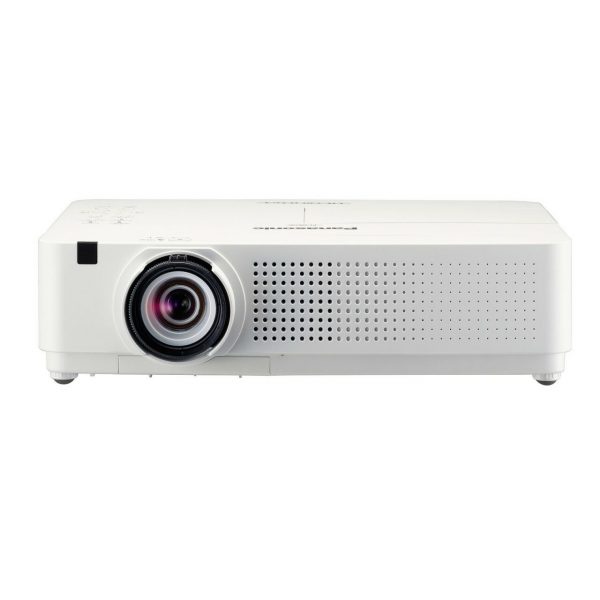

The Panasonic PT-VW330EA projector provides mobility, 3,000 lumens of brightness in a compact form-factor and can be moved from one room to another or installed from a ceiling. Equipped with a lamp that has a 5,000-hour replacement cycle and an original 3–layer air filter with a 6,000-hour filter replacement cycle, labor and expense typically attributed to periodic maintenance is greatly reduced. With a 1.6x zoom lens and auto keystone feature, installation, setup and operation is easy.This lightweight projector is portable and eco-friendly with a low 0.48W standby power consumption rating. The PT-VW330U projector also includes a wide array of features including a 10-watt speaker and microphone input for audio playback directly from the projector, a built-in closed caption decoder and a carrying bag with a handy shoulder strap. Users can expect superb performance, quiet operation and with intelligent lamp control, minimal environmental impact. Dependable and portable projectors, this series is ideal for use in corporate conference rooms, training rooms, classrooms and more.
Product Specs
| Model | PT-VW330EA | |||
|---|---|---|---|---|
| Power supply | 100-240 V AC, 50/60 Hz | |||
| Power consumption | 322 W (0.48 W when standby mode set to Eco*1, 12.5 W when standby mode set to Network.) |
|||
| LCD panel | Panel size | 15 mm (0.59 inches) diagonal (16:10 aspect ratio) |
||
| Display method | Transparent LCD panel (x 3, R/G/B) | |||
| Pixels | 1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels |
|||
| Lens | 1.6x manual zoom (throw ratio: 1.2–1.9:1), manual focus, F 1.65–2.33, f 15.47–24.53 mm | |||
| Lamp | 245 W x 1, lamp replacement cycle (lamp power: Normal/Eco1, Eco2): 3,000 hours/5,000 hours*2 |
|||
| Screen size (diagonal) | 0.76–7.62 m (30–300 inch) | |||
| Brightness | 3,000 lm (lamp power: Auto/Normal) |
|||
| Center-to-corner uniformity*3 | 85 % | |||
| Contrast | 2,000:1 (full on/full off, lamp power: Auto) | |||
| Resolution | 1,280 x 800 pixels*4 | |||
| Scanning frequency | HDMI | fH: 25–80 kHz, fV: 50–85 Hz, dot clock: 162 MHz or lower | ||
| RGB (analog) | fH: 15–100 kHz, fV: 50–100 Hz, dot clock: 140 MHz or lower (Signals exceeding the dot clock rate of 140 MHz are downsampled.) |
|||
| YPBPR (YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i(525i)]
fH: 31.50 kHz, fV: 60 Hz [480p(525p)] fH: 45.00 kHz, fV: 60 Hz [720(750)/60p] fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i] fH: 15.63 kHz, fV: 50 Hz [576i(625i)]
fH: 31.25 kHz, fV: 50 Hz [576p(625p)] fH: 37.50 kHz, fV: 50 Hz [720(750)/50p] fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i] |
|||
| Video/S-Video | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
|||
| Optical axis shift | 49:1 | |||
| Keystone correction range | Vertical: ±30° (±20° when Real-Time Keystone) |
|||
| Installation | Ceiling/floor, front/rear | |||

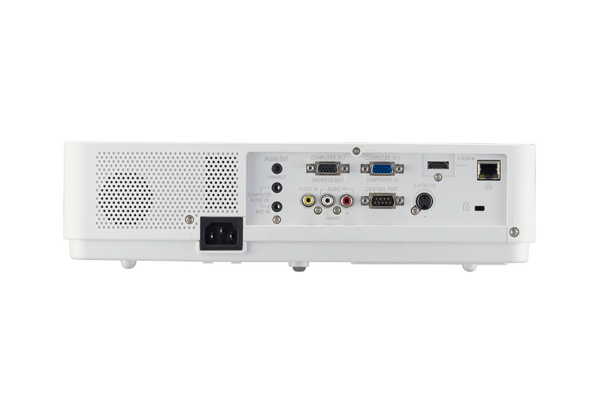

| Terminals | HDMI IN | HDMI 19-pin x 1 (compatible with HDCP) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200)*6 |
||
| COMPUTER IN 1 | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1) | |||
| COMPUTER IN 2 / MONITOR OUT |
D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu) (When Monitor Out is selected, the COMPUTER IN 1 signal is output.) |
|||
| VIDEO IN | RCA pin x 1 (Composite VIDEO) | |||
| S-VIDEO IN | Mini DIN 4-pin x 1 (S-VIDEO) | |||
| AUDIO IN | RCA pin x 2 (L-R x 1) for VIDEO/S-VIDEO input | |||
| COMPUTER AUDIO IN 1 |
M3 x 1 (L-R x 1) | |||
| COMPUTER AUDIO IN 2 (MIC IN) |
M3 x 1 (L-R x 1) for audio input or for microphone connection (variable) | |||
| AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | |||
| SERIAL IN | D-sub 9-pin (male) x 1 for external control (RS-232C compliant) | |||
| LAN | RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™ (class 1)) |
|||
|
Built-in speaker |
3.7 cm round shape x 1, output power: 10.0 W (monaural) | |||
| Noise level | 35 dB (lamp power: Normal), 29 dB (lamp power: Eco1, Eco2) | |||
| Cabinet materials | Molded plastic | |||
| Dimensions (W x H x D) | 350 x 97 x 277 mm (13.8″ x 3.8″ x 10.9″) (with legs at shortest position, not including protruding parts) |
|||
| Weight | Approx. 3.5 kg (7.7 lbs) | |||
| Operating environment | Operating temperature: 5°C–35°C (41°F–95°F), operating humidity: 20%–80% (no condensation) |
|||
| Supplied accessories | Power cord x 1*8, wireless remote control unit, batteries (AAA/R03/LR03 type x 2), carrying bag x 1, RGB cable x 1, filter cover |
|||
| Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) |
||||
